| Summary | 0004707: Wrong reflection in mirror | ||||
| Description | Sometimes reflection in the mirror is black, sometimes it is lit incorrectly. | ||||
| Steps To Reproduce | 1. Load "Accountant 2" Mission. 2. Get to the elevator (sorry, cannot explain it better). 3. On the second floor, enter Griswold apartment. 4. Go through the corridor and turn right on the first possibility. 5. You are in the dining room, go to the door at the end of the room and open it, do not enter. Now there three cases: 1. You look directly at the mirror through the door: the image is correct. 2. You look from the floor height (need noclip) or from the side: the mirror is black. 3. You look from the ceiling (need noclip): the reflection is visible, but it is not lit correctly (some light source is excluded). Sometimes you can even see partially black screen. | ||||
| Additional Information | This happens on latest 2.06 beta. On the previous version (before 7351 and 15123) you could also see start and sky in the mirror in some cases. Now I don't get skybox. | ||||
| Tags | No tags attached. | ||||
 |

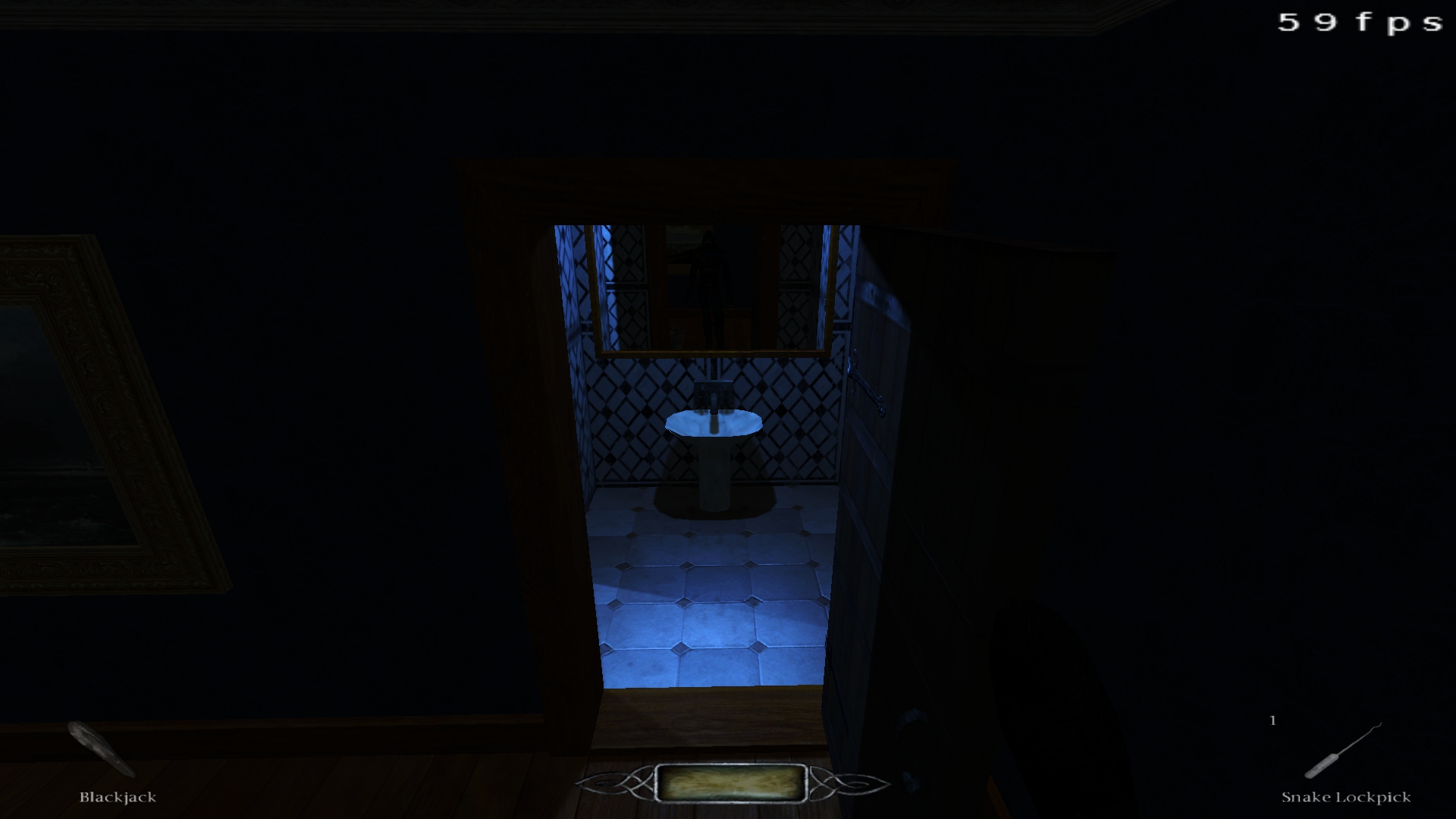

I have attached the screenshots with various cases + config file I use. |
|
|
Ok, I have checked this place in 2.05. I see cases 1 and 3 only. So the lack of lighting is reproduced even in 2.05. But the mirror never got completely black (or mostly black) in 2.05. |
 |
This appears to be a portal bug. The bathroom door portal is closed when it should not. Not sure why though. |
|
|
It might be that when portal is invisible in the mirror (the clipped part of it) it is marked as closed and then does not make it into the main view. The question is, why all other surfaces in the portalled area draw but not the mirror itself? |
|
|

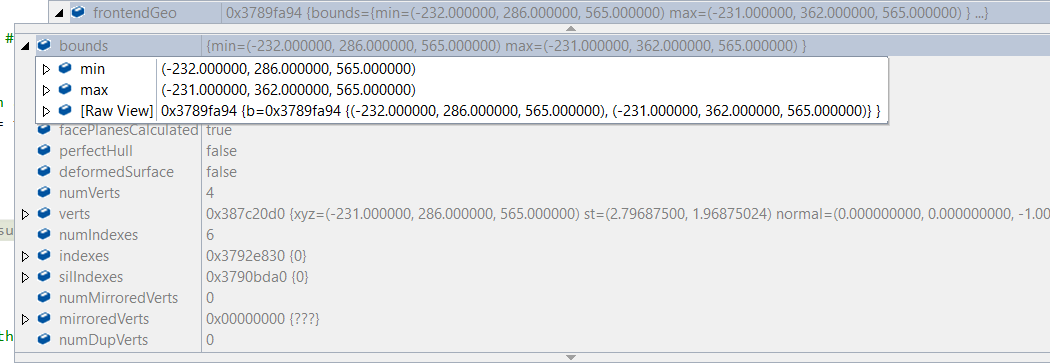

On a closer look it actually looks like two mirror surfaces, one of them (mirror bottom very thin invisible?) toggles another (main). I think this needs to be resolved on the mapper's level. The current engine logic is only do one subview of the same mirror material. All other are skipped until next frame. R_MirrorRender: if ( stage->dynamicFrameCount == tr.frameCount ) { return; } Attached screenshot with the blocking surface debug data. It could originate from this surface in .proc file /* surface 3 */ { "textures/washroom/mirror" /* numVerts = */ 4 /* numIndexes = */ 6 ( -231 286 565 2.796875 1.9687502384 0 0 -1 ) ( -231 362 565 3.390625 1.9687502384 0 0 -1 ) ( -232 362 565 3.390625 1.9765627384 0 0 -1 ) ( -232 286 565 2.796875 1.9765627384 0 0 -1 ) 0 1 2 3 0 2 } |
|
|
Digged to the same problem again on 2.09 beta (at same place): https://forums.thedarkmod.com/index.php?/topic/20691-beta-testing-209/&do=findComment&comment=454925 I tried to test AC2, which has mirrors, and its mirrors are buggy. They have been buggy for quite some time, also in 2.09 they are buggy in slightly different way due to r_useClipPlaneCulling. So I digged deeper, and realized that the mirror that has the problem (near -115.41 415 1157.25) is created with a brush having many mirror-textured sides. The engine only renders mirrored effect for one mirror surface (per material stage), so it just chooses a random surface out of 5-6 available and it happens to be the wrong one. At the very least, I'm going to add a warning about it. Now thinking if I can "magically" fix it for existing maps. |
|
|
I tried to search for mirror textures in .map files. I believe only "Accountant 2" and "patently dangerous" are affected by this problem. |
|
|
With svn rev 9052, now dmap issues a warning if such bad brushes appear, aka: "Brush %d (entity %d) has several sides with same mirror-like material %s" Given that only two FMs are potentially affected by this, I won't introduce hacks to engine to fix them. Hopefully, the will be fixed in some map updates. |
