0006347DarkRadiantRendererpublic03.12.2023 10:1113.01.2024 10:37
ReporterBikerdude Assigned To
PrioritynormalSeverityfeatureReproducibilityalways
Status newResolutionopen
PlatformPCOSWindowsOS Version10 (21H2)
Product Version3.8.0
Summary0006347: Clipping in Orthoview

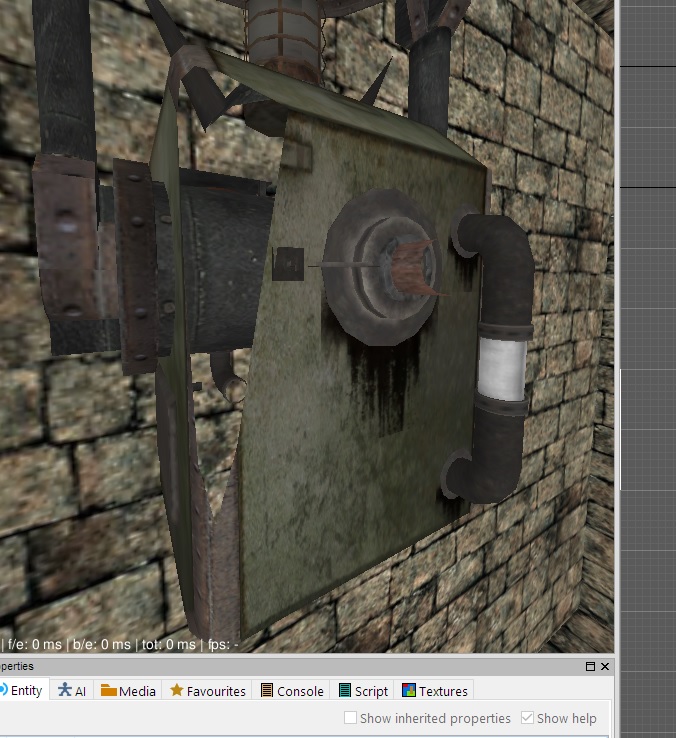

DescriptionOver the years I have found myself working at 0.125 with small models details in DR, but this become a challenge when what your trying to view is clipped out of view as the view camera bounding box clips through the very thing your working on.

Would it be pissble to removed or toggle this clipping off? imho I cant see a reason for having the clipping.
TagsNo tags attached.
Attached Files
DR clipping.jpg (168,973 bytes)
DR clipping.jpg (168,973 bytes)

Activities

greebo

greebo

13.01.2024 05:21

administrator   ~0016352

Can you create a map with the camera saved at the position that is clipping this piece of geometry?

Possible workaround that I haven't tried myself: The near plane of the camera is set to one 4096th of the far clip plane. If you switch off camera clipping completely, the far plane is set to 32768 - leaving the near plane at 8 units (which might be too large for your scenario). Does it help if you *switch on* the camera's far clip plane button when editing small pieces, then moving the far clip plane closer? This should make the near plane value smaller proportionally.
Bikerdude

Bikerdude

13.01.2024 10:37

reporter   ~0016356

Morning Greebo

See attached. And yes turning on farplane clip doe indeed allow me to all the way upto and through the model!

b.
camclip.darkradiant (559 bytes)
