View Issue Details

IDProjectCategoryView StatusLast Update
0004754The Dark ModGUIpublic28.06.2018 08:18
Reporteruser81Assigned Tostgatilov
PrioritynormalSeveritycrashReproducibilityalways
Status resolvedResolutionfixed
PlatformPC, Windows, x64OSWin 7/8OS VersionSp2/8.1
Product VersionTDM 2.06
Target VersionTDM 2.06Fixed in VersionTDM 2.06
Summary0004754: Minimizing Windows TDM: causes a crash
DescriptionRun TDM in a window, then minimize and maximise and it crashes, see attached.
TagsNo tags attached.

Relationships

related to 0004612 resolvednbohr1more Attempt to save game -> crash

Activities

user81

19.03.2018 16:10



AluminumHaste

AluminumHaste

20.03.2018 12:00

developer   ~0010116

Can't reproduce on either 32bit or 64bit
stgatilov

stgatilov

20.03.2018 14:01

administrator   ~0010119

Reproduced from the first try.
Windows x64, fresh SVN. Just run new game on The Ravine and tried to minimized TDM.

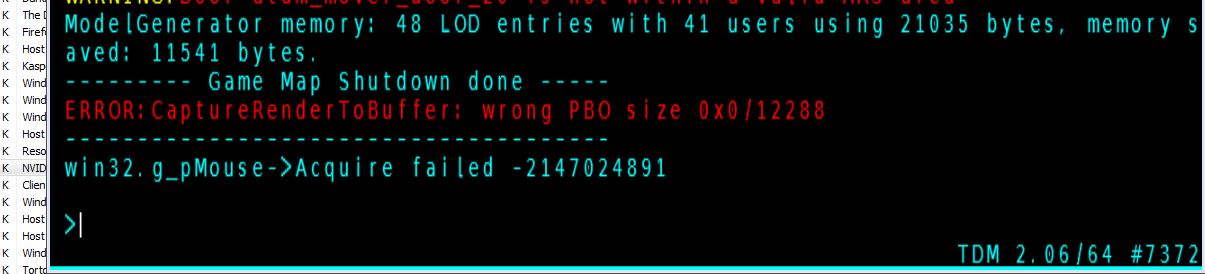

Same error message about wrong PBO size.

Luckily, the error message gives a very clear information about what exactly happens and where. I suppose Duzenko can fix it, if he doesn't mind?...
stgatilov

stgatilov

20.03.2018 14:33

administrator

Darkmod.cfg (12,062 bytes)
stgatilov

stgatilov

20.03.2018 14:34

administrator   ~0010121

I can also reproduce it in Debug x32 (exception is thrown).
Also it happens on The New Job mission.

Since Bikerdude forgot to attach cfg-file, I have attached mine.
nbohr1more

nbohr1more

20.03.2018 14:44

developer   ~0010122

I thought I saw something similar during when I fixed the Lightgem init issues. Might be as easy as forcing pbo = 0 when minimize is invoked?

(Not that I was terribly happy with the way I fixed those issues... Duzenko... ?)
AluminumHaste

AluminumHaste

20.03.2018 15:12

developer   ~0010123

You should only be trying to reproduce errors in 2.06 beta, not SVN.
stgatilov

stgatilov

20.03.2018 15:23

administrator   ~0010124

Probably we should finally do something with the check itself.
Right now it checks if PBO has expected size and crashes if it does not.
Maybe we should simply accept that PBO may have different size at this moment and decide how we should handle it? For instance, we can return zero buffer if such case, write a warning (at least once) and continue playing...
nbohr1more

nbohr1more

20.03.2018 15:51

developer   ~0010125

I like that... :)

user81

20.03.2018 21:59



Darkmod_bkd.cfg (12,009 bytes)

user81

20.03.2018 22:00

  ~0010130

Thanks for picking this up chaps, and I have attached my config if its of any use.
stgatilov

stgatilov

21.03.2018 02:53

administrator   ~0010133

By the way, does the game still run when TDM is minimized?

Because if it does, then returning zero lightgem values from minimized state is not a good idea. Imagine exploit: go to a well-lit place with guard, minimize TDM, wait while guard's steps are gone, restore TDM back to full and continue =)
duzenko

duzenko

25.03.2018 15:15

developer   ~0010158

Last edited: 25.03.2018 15:20

View 2 revisions

Caused by empty (zero) idRenderSystemLocal.renderCrops
  - caused by zero glConfig.vidWidth/Height
  - caused by empty result of GetClientRect in MainWndProc

Basically no rendering is done when a window is minimized currently.
I would suggest to ignore zero values returned by GetClientRect.

Alternatively, since the engine originally only supported running in exclusive fullscreen, we might want to disable the minimize button.

stgatilov

stgatilov

25.03.2018 16:05

administrator   ~0010159

Fixed in SVN rev 7379.

When TDM is minimized, renderview of size 0 x 0 is being captured. I have added a new check: if the renderview contains zero pixels, then the whole reading operation is skipped.
This check triggers when TDM is minimized, so the PBO is left with its normal size 64 x 64 without any errors.

Additional info for merging into 2.06:
This code is located in idRenderSystemLocal::CaptureRenderToBuffer. It must be put into line 936 of RenderSystem.cpp.
nbohr1more

nbohr1more

09.04.2018 12:40

developer   ~0010352

I believe this change has caused a new problem.

With FBO enabled, if your exit one mission then install another, the screen will
be distorted unless you exit Darkmod and restart it.

I tried a few things last night to attempt to cure that but thus far have not made progress.

One thing I didn't try yet is replacing the "return" break in this fix with FB_Clear(). Since that zero's out the PBO perhaps that would have the same effect?

All in all, this problem makes me think that FBO creation should be in RenderSystem_init.
nbohr1more

nbohr1more

10.04.2018 01:51

developer   ~0010355

Throwing in the towel...
stgatilov

stgatilov

10.04.2018 03:52

administrator   ~0010356

Did you verify that the problem is caused by the fix?
Because I do not see how FBO issues can be related to PBO size, especially that my change does not alter behavior if you do NOT minimize windowed TDM at least once.
nbohr1more

nbohr1more

13.04.2018 03:38

developer   ~0010358

Last edited: 13.04.2018 03:39

View 2 revisions

There were two other render changes that had to do with render diagnostic tools.
I was under the impression that they made no changes in FBO handling at all so this is where I focused my efforts. I'll review those to see if something was misleading about their scope.

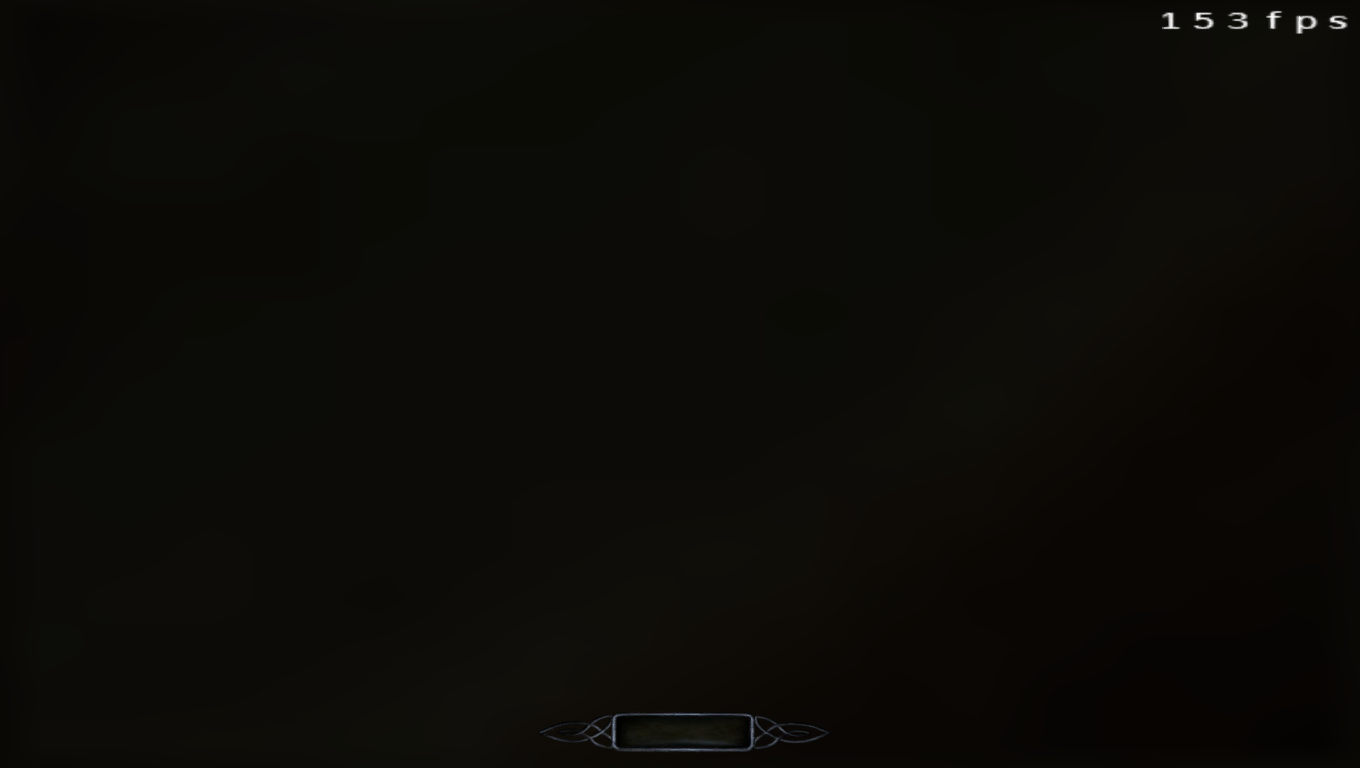

Edit: Screenshot added

nbohr1more

nbohr1more

13.04.2018 03:39

developer

nbohr1more

nbohr1more

13.04.2018 03:50

developer   ~0010359

Argh.

And 7377 changes do alter FBO...
nbohr1more

nbohr1more

13.04.2018 04:09

developer   ~0010360

And there it is. The crime was not committed here.

Just tested this change prior to revision 7377 and the bug does not happen.
nbohr1more

nbohr1more

13.04.2018 04:43

developer   ~0010363

Fixed in rev 7381

user81

13.04.2018 09:07

  ~0010364

Nice works chaps.
grayman

grayman

16.04.2018 17:54

administrator   ~0010367

I don't understand the comment about 7379 needing special merge instructions; the change is a simple addition. Also, the merge instructions don't talk about the correct file involved in 7379.

I assume that merging 7379 followed by 7381 achieves the correct fix.
nbohr1more

nbohr1more

16.04.2018 18:32

developer   ~0010368

The special issue is probably just due to divergence between SVN and 2.06 in framebuffer.cpp.

7381 is related to 7377. So if you merge 7377 then apply 7381 too.
grayman

grayman

16.04.2018 18:37

administrator   ~0010369

So I should not merge 7379?

7379's framebufer.cpp has a ton of changes in it and does NOT merge automatically. Nor am I able to do a manual merge, due to the number of changes.
nbohr1more

nbohr1more

16.04.2018 19:17

developer   ~0010370

I will attempt a local merge of the diff between 7379 and the previous revision of framebuffer.cpp against a working copy of the 2.06 beta branch tonight.

If there's no problem with that I will relay the steps and\or merge it myself if needed.
grayman

grayman

16.04.2018 19:19

administrator   ~0010371

I see the source of my confusion.

I can't merge 7379 because it's a simple change to a larger previous change that is not part of 2.06.

So I will NOT be merging 7379.
nbohr1more

nbohr1more

16.04.2018 19:25

developer   ~0010372

I get it.

The same code exists in both but SVN has it in framebuffer but 2.06 has it in RenderSystem.

I guess this get's moved to 2.07 with a note to end-users about minimizing TDM and the risk of crashing?
grayman

grayman

16.04.2018 19:38

administrator   ~0010373

No clue.

I did NOT merge 7379.

I hand-merged 7377, followed by 7381.
nbohr1more

nbohr1more

17.04.2018 03:55

developer

RenderSystem.cpp (26,486 bytes)
/*****************************************************************************
                    The Dark Mod GPL Source Code

 This file is part of the The Dark Mod Source Code, originally based
 on the Doom 3 GPL Source Code as published in 2011.

 The Dark Mod Source Code is free software: you can redistribute it
 and/or modify it under the terms of the GNU General Public License as
 published by the Free Software Foundation, either version 3 of the License,
 or (at your option) any later version. For details, see LICENSE.TXT.

 Project: The Dark Mod (http://www.thedarkmod.com/)

******************************************************************************/
#include "precompiled.h"
#pragma hdrstop



#include "tr_local.h"

idRenderSystemLocal	tr;
idRenderSystem	*renderSystem = &tr;


/*
=====================
R_PerformanceCounters

This prints both front and back end counters, so it should
only be called when the back end thread is idle.
=====================
*/
static void R_PerformanceCounters( void ) {
	if ( r_showPrimitives.GetInteger() != 0 ) {

		float megaBytes = globalImages->SumOfUsedImages() / ( 1024*1024.0 );

		if ( r_showPrimitives.GetInteger() > 1 ) {
			common->Printf( "v:%i ds:%i t:%i/%i v:%i/%i st:%i sv:%i image:%5.1f MB\n",
				tr.pc.c_numViews,
				backEnd.pc.c_drawElements + backEnd.pc.c_shadowElements,
				backEnd.pc.c_drawIndexes / 3,
				( backEnd.pc.c_drawIndexes - backEnd.pc.c_drawRefIndexes ) / 3,
				backEnd.pc.c_drawVertexes,
				( backEnd.pc.c_drawVertexes - backEnd.pc.c_drawRefVertexes ),
				backEnd.pc.c_shadowIndexes / 3,
				backEnd.pc.c_shadowVertexes,
				megaBytes
				);
		} else {
			common->Printf( "views:%i draws:%i tris:%i (shdw:%i) (vbo:%i) image:%5.1f MB\n",
				tr.pc.c_numViews,
				backEnd.pc.c_drawElements + backEnd.pc.c_shadowElements,
				( backEnd.pc.c_drawIndexes + backEnd.pc.c_shadowIndexes ) / 3,
				backEnd.pc.c_shadowIndexes / 3,
				backEnd.pc.c_vboIndexes / 3,
				megaBytes
				);
		}
	}

	if ( r_showDynamic.GetBool() ) {
		common->Printf( "callback:%i md5:%i dfrmVerts:%i dfrmTris:%i tangTris:%i guis:%i\n",
			tr.pc.c_entityDefCallbacks,
			tr.pc.c_generateMd5,
			tr.pc.c_deformedVerts,
			tr.pc.c_deformedIndexes/3,
			tr.pc.c_tangentIndexes/3,
			tr.pc.c_guiSurfs
			);
	}

	if ( r_showCull.GetBool() ) {
		common->Printf( "%i sin %i sclip  %i sout %i bin %i bout\n",
			tr.pc.c_sphere_cull_in, tr.pc.c_sphere_cull_clip, tr.pc.c_sphere_cull_out,
			tr.pc.c_box_cull_in, tr.pc.c_box_cull_out );
	}

	if ( r_showAlloc.GetBool() ) {
		common->Printf( "alloc:%i free:%i\n", tr.pc.c_alloc, tr.pc.c_free );
	}

	if ( r_showInteractions.GetBool() ) {
		common->Printf( "createInteractions:%i createLightTris:%i createShadowVolumes:%i\n",
			tr.pc.c_createInteractions, tr.pc.c_createLightTris, tr.pc.c_createShadowVolumes );
 	}
	if ( r_showDefs.GetBool() ) {
		common->Printf( "viewEntities:%i  shadowEntities:%i  viewLights:%i\n", tr.pc.c_visibleViewEntities,
			tr.pc.c_shadowViewEntities, tr.pc.c_viewLights );
	}
	if ( r_showUpdates.GetBool() ) {
		common->Printf( "entityUpdates:%i  entityRefs:%i  lightUpdates:%i  lightRefs:%i\n",
			tr.pc.c_entityUpdates, tr.pc.c_entityReferences,
			tr.pc.c_lightUpdates, tr.pc.c_lightReferences );
	}
	if ( r_showMemory.GetBool() ) {
		int m0 = frameData ? frameData->frameMemoryAllocated.load() : 0;
		int	m1 = frameData ? frameData->memoryHighwater : 0;
		common->Printf( "frameData: %i (%i)\n", m0, m1 );
	}

	memset( &tr.pc, 0, sizeof( tr.pc ) );
	memset( &backEnd.pc, 0, sizeof( backEnd.pc ) );
}



/*
====================
R_IssueRenderCommands

Called by R_EndFrame each frame
====================
*/
static void R_IssueRenderCommands( frameData_t *frameData ) {
	emptyCommand_t *cmds = frameData->cmdHead;
	if ( cmds->commandId == RC_NOP
		&& !cmds->next ) {
		// nothing to issue
		return;
	}

	// r_skipBackEnd allows the entire time of the back end
	// to be removed from performance measurements, although
	// nothing will be drawn to the screen.  If the prints
	// are going to a file, or r_skipBackEnd is later disabled,
	// usefull data can be received.

	// r_skipRender is usually more usefull, because it will still
	// draw 2D graphics
	if ( !r_skipBackEnd.GetBool() ) {
		RB_ExecuteBackEndCommands( cmds );
	}

	R_ClearCommandChain( frameData );
}

/*
============
R_GetCommandBuffer

Returns memory for a command buffer (stretchPicCommand_t,
drawSurfsCommand_t, etc) and links it to the end of the
current command chain.
============
*/
void *R_GetCommandBuffer( int bytes ) {
	emptyCommand_t	*cmd;

	cmd = (emptyCommand_t *)R_FrameAlloc( bytes );
	cmd->next = NULL;
	frameData->cmdTail->next = &cmd->commandId;
	frameData->cmdTail = cmd;

	return (void *)cmd;
}


/*
====================
R_ClearCommandChain

Called after every buffer submission
and by R_ToggleSmpFrame
====================
*/
void R_ClearCommandChain( frameData_t *frameData ) {
	// clear the command chain
	frameData->cmdHead = frameData->cmdTail = (emptyCommand_t *)R_FrameAlloc( sizeof( *frameData->cmdHead ) );
	frameData->cmdHead->commandId = RC_NOP;
	frameData->cmdHead->next = NULL;
}

/*
=================
R_ViewStatistics
=================
*/
static void R_ViewStatistics( viewDef_t &parms ) {
	// report statistics about this view
	if ( !r_showSurfaces.GetBool() ) {
		return;
	}
	common->Printf( "view:%p surfs:%i\n", parms, parms.numDrawSurfs );
}

/*
=============
R_AddDrawViewCmd

This is the main 3D rendering command.  A single scene may
have multiple views if a mirror, portal, or dynamic texture is present.
=============
*/
void	R_AddDrawViewCmd( viewDef_t &parms ) {
	drawSurfsCommand_t	*cmd;

	cmd = (drawSurfsCommand_t *)R_GetCommandBuffer( sizeof( *cmd ) );
	cmd->commandId = RC_DRAW_VIEW;

	cmd->viewDef = &parms;

	if ( parms.viewEntitys ) {
		// save the command for r_lockSurfaces debugging
		tr.lockSurfacesCmd = *cmd;
	}

	tr.pc.c_numViews++;

	R_ViewStatistics( parms );
}


//=================================================================================


/*
======================
R_LockSurfaceScene

r_lockSurfaces allows a developer to move around
without changing the composition of the scene, including
culling.  The only thing that is modified is the
view position and axis, no front end work is done at all


Add the stored off command again, so the new rendering will use EXACTLY
the same surfaces, including all the culling, even though the transformation
matricies have been changed.  This allow the culling tightness to be
evaluated interactively.
======================
*/
void R_LockSurfaceScene( viewDef_t &parms ) {
	drawSurfsCommand_t	*cmd;
	viewEntity_t			*vModel;

	// set the matrix for world space to eye space
	R_SetViewMatrix( parms );
	tr.lockSurfacesCmd.viewDef->worldSpace = parms.worldSpace;

	// update the view origin and axis, and all
	// the entity matricies
	for( vModel = tr.lockSurfacesCmd.viewDef->viewEntitys ; vModel ; vModel = vModel->next ) {
		myGlMultMatrix( vModel->modelMatrix,
			tr.lockSurfacesCmd.viewDef->worldSpace.modelViewMatrix,
			vModel->modelViewMatrix );
	}

	// add the stored off surface commands again
	cmd = (drawSurfsCommand_t *)R_GetCommandBuffer( sizeof( *cmd ) );
	*cmd = tr.lockSurfacesCmd;
}

/*
=============
R_CheckCvars

See if some cvars that we watch have changed
=============
*/
static void R_CheckCvars( void ) {
	globalImages->CheckCvars();

	// gamma stuff
	if ( r_gamma.IsModified() || r_brightness.IsModified() ) {
		r_gamma.ClearModified();
		r_brightness.ClearModified();
		R_SetColorMappings();
	}

	// check for changes to logging state
	GLimp_EnableLogging( r_logFile.GetInteger() != 0 );
}

/*
=============
idRenderSystemLocal::idRenderSystemLocal
=============
*/
idRenderSystemLocal::idRenderSystemLocal( void ) {
	Clear();
}

/*
=============
idRenderSystemLocal::~idRenderSystemLocal
=============
*/

idRenderSystemLocal::~idRenderSystemLocal( void ) {
	// #4395: Duzenko lightem pixel pack buffer optimization
	/*if (pbo && qglDeleteBuffersARB) // crashes on linux, never called on windows, needs to be moved to a better place or removed at all
		qglDeleteBuffersARB(1, &pbo);*/
}

/*
=============
SetColor

This can be used to pass general information to the current material, not
just colors
=============
*/
void idRenderSystemLocal::SetColor( const idVec4 &rgba ) {
	guiModel->SetColor( rgba[0], rgba[1], rgba[2], rgba[3] );
}


/*
=============
SetColor4
=============
*/
void idRenderSystemLocal::SetColor4( float r, float g, float b, float a ) {
	guiModel->SetColor( r, g, b, a );
}

/*
=============
DrawStretchPic
=============
*/
void idRenderSystemLocal::DrawStretchPic( const idDrawVert *verts, const glIndex_t *indexes, int vertCount, int indexCount, const idMaterial *material,
									   bool clip, float min_x, float min_y, float max_x, float max_y ) {
	guiModel->DrawStretchPic( verts, indexes, vertCount, indexCount, material,
		clip, min_x, min_y, max_x, max_y );
}

/*
=============
DrawStretchPic

x/y/w/h are in the 0,0 to 640,480 range
=============
*/
void idRenderSystemLocal::DrawStretchPic( float x, float y, float w, float h, float s1, float t1, float s2, float t2, const idMaterial *material ) {
	guiModel->DrawStretchPic( x, y, w, h, s1, t1, s2, t2, material );
}

/*
=============
DrawStretchTri

x/y/w/h are in the 0,0 to 640,480 range
=============
*/
void idRenderSystemLocal::DrawStretchTri( idVec2 p1, idVec2 p2, idVec2 p3, idVec2 t1, idVec2 t2, idVec2 t3, const idMaterial *material ) {
	tr.guiModel->DrawStretchTri( p1, p2, p3, t1, t2, t3, material );
}

/*
=============
GlobalToNormalizedDeviceCoordinates
=============
*/
void idRenderSystemLocal::GlobalToNormalizedDeviceCoordinates( const idVec3 &global, idVec3 &ndc ) {
	R_GlobalToNormalizedDeviceCoordinates( global, ndc );
}

/*
=============
GlobalToNormalizedDeviceCoordinates
=============
*/
void idRenderSystemLocal::GetGLSettings( int& width, int& height ) {
	width = glConfig.vidWidth;
	height = glConfig.vidHeight;
}

/*
=====================
idRenderSystemLocal::DrawSmallChar

small chars are drawn at native screen resolution
=====================
*/
void idRenderSystemLocal::DrawSmallChar( int x, int y, int ch, const idMaterial *material ) {
	int row, col;
	float frow, fcol;
	float size;

	ch &= 255;

	if ( ch == ' ' ) {
		return;
	}

	if ( y < -SMALLCHAR_HEIGHT ) {
		return;
	}

	row = ch >> 4;
	col = ch & 15;

	frow = row * 0.0625f;
	fcol = col * 0.0625f;
	size = 0.0625f;

	DrawStretchPic( x, y, SMALLCHAR_WIDTH, SMALLCHAR_HEIGHT,
					   fcol, frow,
					   fcol + size, frow + size,
					   material );
}

/*
==================
idRenderSystemLocal::DrawSmallString[Color]

Draws a multi-colored string with a drop shadow, optionally forcing
to a fixed color.

Coordinates are at 640 by 480 virtual resolution
==================
*/
void idRenderSystemLocal::DrawSmallStringExt( int x, int y, const char *string, const idVec4 &setColor, bool forceColor, const idMaterial *material ) {
	idVec4		color;
	const unsigned char	*s;
	int			xx;

	// draw the colored text
	s = (const unsigned char*)string;
	xx = x;
	SetColor( setColor );
	while ( *s ) {
		if ( idStr::IsColor( (const char*)s ) ) {
			if ( !forceColor ) {
				if ( *(s+1) == C_COLOR_DEFAULT ) {
					SetColor( setColor );
				} else {
					color = idStr::ColorForIndex( *(s+1) );
					color[3] = setColor[3];
					SetColor( color );
				}
			}
			s += 2;
			continue;
		}
		DrawSmallChar( xx, y, *s, material );
		xx += SMALLCHAR_WIDTH;
		s++;
	}
	SetColor( colorWhite );
}

/*
=====================
idRenderSystemLocal::DrawBigChar
=====================
*/
void idRenderSystemLocal::DrawBigChar( int x, int y, int ch, const idMaterial *material ) {
	int row, col;
	float frow, fcol;
	float size;

	ch &= 255;

	if ( ch == ' ' ) {
		return;
	}

	if ( y < -BIGCHAR_HEIGHT ) {
		return;
	}

	row = ch >> 4;
	col = ch & 15;

	frow = row * 0.0625f;
	fcol = col * 0.0625f;
	size = 0.0625f;

	DrawStretchPic( x, y, BIGCHAR_WIDTH, BIGCHAR_HEIGHT,
					   fcol, frow,
					   fcol + size, frow + size,
					   material );
}

/*
==================
idRenderSystemLocal::DrawBigString[Color]

Draws a multi-colored string with a drop shadow, optionally forcing
to a fixed color.

Coordinates are at 640 by 480 virtual resolution
==================
*/
void idRenderSystemLocal::DrawBigStringExt( int x, int y, const char *string, const idVec4 &setColor, bool forceColor, const idMaterial *material ) {
	idVec4		color;
	const char	*s;
	int			xx;

	// draw the colored text
	s = string;
	xx = x;
	SetColor( setColor );
	while ( *s ) {
		if ( idStr::IsColor( s ) ) {
			if ( !forceColor ) {
				if ( *(s+1) == C_COLOR_DEFAULT ) {
					SetColor( setColor );
				} else {
					color = idStr::ColorForIndex( *(s+1) );
					color[3] = setColor[3];
					SetColor( color );
				}
			}
			s += 2;
			continue;
		}
		DrawBigChar( xx, y, *s, material );
		xx += BIGCHAR_WIDTH;
		s++;
	}
	SetColor( colorWhite );
}

//======================================================================================

/*
====================
BeginFrame
====================
*/
void idRenderSystemLocal::BeginFrame( int windowWidth, int windowHeight ) {
	setBufferCommand_t	*cmd;

	if ( !glConfig.isInitialized ) {
		return;
	}

	// determine which back end we will use
	//SetBackEndRenderer();

	guiModel->Clear();

	// for the larger-than-window tiled rendering screenshots
	if ( tiledViewport[0] ) {
		windowWidth = tiledViewport[0];
		windowHeight = tiledViewport[1];
	}

	glConfig.vidWidth = windowWidth;
	glConfig.vidHeight = windowHeight;

	renderCrops[0].x = 0;
	renderCrops[0].y = 0;
	if (r_useFbo.GetBool()) { // duzenko #4425: allow virtual resolution
		renderCrops[0].width = windowWidth*r_fboResolution.GetFloat();
		renderCrops[0].height = windowHeight*r_fboResolution.GetFloat();
	} else {
		renderCrops[0].width = windowWidth;
		renderCrops[0].height = windowHeight;
	}

	currentRenderCrop = 0;

	// screenFraction is just for quickly testing fill rate limitations
	if ( r_screenFraction.GetInteger() != 100 ) {
		int	w = SCREEN_WIDTH * r_screenFraction.GetInteger() / 100.0f;
		int h = SCREEN_HEIGHT * r_screenFraction.GetInteger() / 100.0f;
		CropRenderSize( w, h );
	}


	// this is the ONLY place this is modified
	frameCount++;

	// just in case we did a common->Error while this
	// was set
	guiRecursionLevel = 0;

	// the first rendering will be used for commands like
	// screenshot, rather than a possible subsequent remote
	// or mirror render
//	primaryWorld = NULL;

	// set the time for shader effects in 2D rendering
	frameShaderTime = eventLoop->Milliseconds() * 0.001;

	//
	// draw buffer stuff
	//
	cmd = (setBufferCommand_t *)R_GetCommandBuffer( sizeof( *cmd ) );
	cmd->commandId = RC_SET_BUFFER;
	cmd->frameCount = frameCount;

	if ( r_frontBuffer.GetBool() ) {
		cmd->buffer = (int)GL_FRONT;
	} else {
		cmd->buffer = (int)GL_BACK;
	}
}

void idRenderSystemLocal::WriteDemoPics() {
	session->writeDemo->WriteInt( DS_RENDER );
	session->writeDemo->WriteInt( DC_GUI_MODEL );
	guiModel->WriteToDemo( session->writeDemo );
}

void idRenderSystemLocal::DrawDemoPics() {
	demoGuiModel->EmitFullScreen();
}

/*
=============
EndFrame

Returns the number of msec spent in the back end
=============
*/
void idRenderSystemLocal::EndFrame( int *frontEndMsec, int *backEndMsec ) {
	static idFile* logFile = nullptr;

	if ( !glConfig.isInitialized ) {
		return;
	}

	int startLoop = Sys_Milliseconds();
	session->ActivateFrontend();
	int endSignal = Sys_Milliseconds();
	// start the back end up again with the new command list
	R_IssueRenderCommands( backendFrameData );
	int endRender = Sys_Milliseconds();
	session->WaitForFrontendCompletion();
	int endWait = Sys_Milliseconds();

	if( r_logSmpTimings.GetBool() ) {
		if( !logFile ) {
			logFile = fileSystem->OpenFileWrite( "backend_timings.txt", "fs_savepath", "" );
		}
		int signalFrontend = endSignal - startLoop;
		int render = endRender - endSignal;
		int waitForFrontend = endWait - endRender;
		logFile->Printf( "Backend timing: signal %d - render %d - wait %d | begin %d - end %d\n", signalFrontend, render, waitForFrontend, startLoop, endWait );
	}

	// check for dynamic changes that require some initialization
	R_CheckCvars();

#ifdef DEBUG
    // check for errors
	GL_CheckErrors();
#endif

	// use the other buffers next frame, because another CPU
	// may still be rendering into the current buffers
	R_ToggleSmpFrame();

	// we can now release the vertexes used this frame
	vertexCache.EndFrame();

	if ( session->writeDemo ) {
		session->writeDemo->WriteInt( DS_RENDER );
		session->writeDemo->WriteInt( DC_END_FRAME );
		if ( r_showDemo.GetBool() ) {
			common->Printf( "write DC_END_FRAME\n" );
		}
	}

	// save out timing information
	if (frontEndMsec) {
		*frontEndMsec = pc.frontEndMsec;
	}
	if (backEndMsec) {
		*backEndMsec = backEnd.pc.msec;
	}

	// print any other statistics and clear all of them
	R_PerformanceCounters();
}

/*
=====================
RenderViewToViewport

Converts from SCREEN_WIDTH / SCREEN_HEIGHT coordinates to current cropped pixel coordinates
=====================
*/
void idRenderSystemLocal::RenderViewToViewport( const renderView_t &renderView, idScreenRect &viewport ) {
	renderCrop_t &rc = renderCrops[currentRenderCrop];

	float wRatio = (float) rc.width / SCREEN_WIDTH;
	float hRatio = (float) rc.height / SCREEN_HEIGHT;

	viewport.x1 = idMath::Ftoi( rc.x + renderView.x * wRatio );
	viewport.x2 = idMath::Ftoi( rc.x + floor( ( renderView.x + renderView.width ) * wRatio + 0.5f ) - 1 );
	viewport.y1 = idMath::Ftoi( ( rc.y + rc.height ) - floor( ( renderView.y + renderView.height ) * hRatio + 0.5f ) );
	viewport.y2 = idMath::Ftoi( ( rc.y + rc.height ) - floor( renderView.y * hRatio + 0.5f ) - 1 );
}

static int RoundDownToPowerOfTwo( int v ) {
	int	i;

	for ( i = 0 ; i < 20 ; i++ ) {
		if ( ( 1 << i ) == v ) {
			return v;
		}
		if ( ( 1 << i ) > v ) {
			return 1 << ( i-1 );
		}
	}
	return 1<<i;
}

/*
================
CropRenderSize

This automatically halves sizes until it fits in the current window size,
so if you specify a power of two size for a texture copy, it may be shrunk
down, but still valid.
================
*/
void	idRenderSystemLocal::CropRenderSize( int width, int height, bool makePowerOfTwo, bool forceDimensions ) {
	if ( !glConfig.isInitialized ) {
		return;
	}

	// close any gui drawing before changing the size
	guiModel->EmitFullScreen();
	guiModel->Clear();

	if ( width < 1 || height < 1 ) {
		common->Error( "CropRenderSize: bad sizes" );
	}

	if ( session->writeDemo ) {
		session->writeDemo->WriteInt( DS_RENDER );
		session->writeDemo->WriteInt( DC_CROP_RENDER );
		session->writeDemo->WriteInt( width );
		session->writeDemo->WriteInt( height );
		session->writeDemo->WriteInt( makePowerOfTwo );

		if ( r_showDemo.GetBool() ) {
			common->Printf( "write DC_CROP_RENDER\n" );
		}
	}

	// convert from virtual SCREEN_WIDTH/SCREEN_HEIGHT coordinates to physical OpenGL pixels
	renderView_t renderView;
	renderView.x = 0;
	renderView.y = 0;
	renderView.width = width;
	renderView.height = height;

	idScreenRect	r;
	RenderViewToViewport( renderView, r );

	width = r.x2 - r.x1 + 1;
	height = r.y2 - r.y1 + 1;

	if ( forceDimensions ) {
		// just give exactly what we ask for
		width = renderView.width;
		height = renderView.height;
	}

	// if makePowerOfTwo, drop to next lower power of two after scaling to physical pixels
	if ( makePowerOfTwo ) {
		width = RoundDownToPowerOfTwo( width );
		height = RoundDownToPowerOfTwo( height );
		// FIXME: megascreenshots with offset viewports don't work right with this yet
	}

	renderCrop_t	*rc = &renderCrops[currentRenderCrop];

	// we might want to clip these to the crop window instead
	while ( width > glConfig.vidWidth ) {
		width >>= 1;
	}
	while ( height > glConfig.vidHeight ) {
		height >>= 1;
	}

	if ( currentRenderCrop == MAX_RENDER_CROPS ) {
		common->Error( "idRenderSystemLocal::CropRenderSize: currentRenderCrop == MAX_RENDER_CROPS" );
	}

	currentRenderCrop++;

	rc = &renderCrops[currentRenderCrop];

	rc->x = 0;
	rc->y = 0;
	rc->width = width;
	rc->height = height;
}

void idRenderSystemLocal::GetCurrentRenderCropSize(int& width, int& height)
{
	renderCrop_t* rc = &renderCrops[currentRenderCrop];

	width = rc->width;
	height = rc->height;
}

/*
================
UnCrop
================
*/
void idRenderSystemLocal::UnCrop() {
	if ( !glConfig.isInitialized ) {
		return;
	}

	if ( currentRenderCrop < 1 ) {
		common->Error( "idRenderSystemLocal::UnCrop: currentRenderCrop < 1" );
	}

	// close any gui drawing
	guiModel->EmitFullScreen();
	guiModel->Clear();

	currentRenderCrop--;

	if ( session->writeDemo ) {
		session->writeDemo->WriteInt( DS_RENDER );
		session->writeDemo->WriteInt( DC_UNCROP_RENDER );

		if ( r_showDemo.GetBool() ) {
			common->Printf( "write DC_UNCROP\n" );
		}
	}
}

/*
================
CaptureRenderToImage
================
*/
void idRenderSystemLocal::CaptureRenderToImage( const char *imageName ) {
	if ( !glConfig.isInitialized ) {
		return;
	}
	guiModel->EmitFullScreen();
	guiModel->Clear();

	if ( session->writeDemo ) {
		session->writeDemo->WriteInt( DS_RENDER );
		session->writeDemo->WriteInt( DC_CAPTURE_RENDER );
		session->writeDemo->WriteHashString( imageName );

		if ( r_showDemo.GetBool() ) {
			common->Printf( "write DC_CAPTURE_RENDER: %s\n", imageName );
		}
	}

	// look up the image before we create the render command, because it
	// may need to sync to create the image
	idImage	*image = globalImages->ImageFromFile(imageName, TF_DEFAULT, true, TR_REPEAT, TD_DEFAULT);

	renderCrop_t *rc = &renderCrops[currentRenderCrop];

	copyRenderCommand_t *cmd = (copyRenderCommand_t *)R_GetCommandBuffer( sizeof( *cmd ) );
	cmd->commandId = RC_COPY_RENDER;
	cmd->x = rc->x;
	cmd->y = rc->y;
	cmd->imageWidth = rc->width;
	cmd->imageHeight = rc->height;
	cmd->image = image;

	guiModel->Clear();
}

/*
==============
CaptureRenderToFile

==============
*/
void idRenderSystemLocal::CaptureRenderToFile( const char *fileName, bool fixAlpha ) {
	if ( !glConfig.isInitialized ) {
		return;
	}

	renderCrop_t *rc = &renderCrops[currentRenderCrop];

	guiModel->EmitFullScreen();
	guiModel->Clear();
	R_IssueRenderCommands( frameData );

	if (!r_useFbo.GetBool()) // duzenko #4425: not applicable, raises gl errors
		qglReadBuffer(GL_BACK);

	// calculate pitch of buffer that will be returned by qglReadPixels()
	int alignment;
	qglGetIntegerv(GL_PACK_ALIGNMENT, &alignment);

	int pitch = rc->width * 4 + alignment - 1;
	pitch = pitch - pitch % alignment;

	byte *data = (byte *)R_StaticAlloc( pitch * rc->height );

	// GL_RGBA/GL_UNSIGNED_BYTE seems to be the safest option
	qglReadPixels( rc->x, rc->y, rc->width, rc->height, GL_RGBA, GL_UNSIGNED_BYTE, data );

	byte *data2 = (byte *)R_StaticAlloc( rc->width * rc->height * 4 );

	for ( int y = 0 ; y < rc->height ; y++ ) {
		for ( int x = 0 ; x < rc->width ; x++ ) {
			int idx = y * pitch + x * 4;
			int idx2 = (y * rc->width + x) * 4;

			data2[ idx2 + 0 ] = data[ idx + 0 ];
			data2[ idx2 + 1 ] = data[ idx + 1 ];
			data2[ idx2 + 2 ] = data[ idx + 2 ];
			data2[ idx2 + 3 ] = 0xff;
		}
	}

	R_WriteTGA( fileName, data2, rc->width, rc->height, true );

	R_StaticFree( data );
	R_StaticFree( data2 );
}

void idRenderSystemLocal::CaptureRenderToBuffer(unsigned char* buffer, bool usePbo)
{
	if ( !glConfig.isInitialized ) {
		return;
	}

	renderCrop_t rc = renderCrops[currentRenderCrop];
	if ( r_useFbo.GetBool() && !usePbo ) { // 4676 duzenko FIXME usePbo has double function
		rc.width /= r_fboResolution.GetFloat();
		rc.height /= r_fboResolution.GetFloat();
	}
	rc.width = (rc.width + 3) & ~3; //opengl wants width padded to 4x

	guiModel->EmitFullScreen();
	guiModel->Clear();
	R_IssueRenderCommands( frameData );

	if (cmd.imageWidth * cmd.imageHeight == 0) {
		//stgatilov #4754: this happens during lightgem calculating in minimized windowed TDM
		return;	//no pixels to be read
	}

	int backEndStartTime = Sys_Milliseconds();
	if (!r_useFbo.GetBool()) // duzenko #4425: not applicable, raises gl errors
		qglReadBuffer(GL_BACK);

// #4395 Duzenko lightem pixel pack buffer optimization
	if (usePbo && glConfig.pixelBufferAvailable) {
		static int pboSize = -1;
		if (!pbo) {
			pboSize = rc.width * rc.height * 3;
			qglGenBuffersARB(1, &pbo);
			qglBindBufferARB(GL_PIXEL_PACK_BUFFER, pbo);
			qglBufferDataARB(GL_PIXEL_PACK_BUFFER, pboSize, NULL, GL_STREAM_READ);
			qglBindBufferARB(GL_PIXEL_PACK_BUFFER, 0);
		}
		if (rc.width * rc.height * 3 != pboSize)
			common->Error( "CaptureRenderToBuffer: wrong PBO size %dx%d/%d", rc.width, rc.height, pboSize );
		qglBindBufferARB(GL_PIXEL_PACK_BUFFER, pbo);
		unsigned char* ptr = (unsigned char*)qglMapBufferARB(GL_PIXEL_PACK_BUFFER, GL_READ_ONLY);
		if (ptr) {
			memcpy(buffer, ptr, pboSize);
			qglUnmapBufferARB(GL_PIXEL_PACK_BUFFER);
		}
		else {
			// #4395 vid_restart ?
			pbo = 0;
		}
		qglReadPixels(rc.x, rc.y, rc.width, rc.height, GL_RGB, GL_UNSIGNED_BYTE, 0);
		//qglReadPixels(rc->x, rc->y, rc->width, rc->height, GL_RGB, r_fboColorBits.GetInteger() == 15 ? GL_UNSIGNED_SHORT_5_5_5_1 : GL_UNSIGNED_BYTE, 0);
		qglBindBufferARB(GL_PIXEL_PACK_BUFFER, 0);
	} else
		qglReadPixels(rc.x, rc.y, rc.width, rc.height, GL_RGB, GL_UNSIGNED_BYTE, buffer);
	qglClear(GL_COLOR_BUFFER_BIT);
	int backEndFinishTime = Sys_Milliseconds();
	backEnd.pc.msec += backEndFinishTime - backEndStartTime;
}

/*
==============
AllocRenderWorld
==============
*/
idRenderWorld *idRenderSystemLocal::AllocRenderWorld() {
	idRenderWorldLocal *rw;
	rw = new idRenderWorldLocal;
	worlds.Append( rw );
	return rw;
}

/*
==============
FreeRenderWorld
==============
*/
void idRenderSystemLocal::FreeRenderWorld( idRenderWorld *rw ) {
	if ( primaryWorld == rw ) {
		primaryWorld = NULL;
	}
	worlds.Remove( static_cast<idRenderWorldLocal *>(rw) );
	delete rw;
}

/*
==============
PrintMemInfo
==============
*/
void idRenderSystemLocal::PrintMemInfo( MemInfo_t *mi ) {
	// sum up image totals
	globalImages->PrintMemInfo( mi );

	// sum up model totals
	renderModelManager->PrintMemInfo( mi );

	// compute render totals

}

/*
===============
idRenderSystemLocal::UploadImage
===============
*/
bool idRenderSystemLocal::UploadImage( const char *imageName, const byte *data, int width, int height  ) {
	idImage *image = globalImages->GetImage( imageName );
	if ( !image ) {
		return false;
	}
	image->UploadScratch( data, width, height );
	image->SetImageFilterAndRepeat();
	return true;
}
RenderSystem.cpp (26,486 bytes)
nbohr1more

nbohr1more

17.04.2018 03:57

developer   ~0010374

I have attached the 2.06 compliant RenderSystem.cpp 7379 fix Referred to by stgatilov.

That won't help 7377 and 7378 which appear to be irreconcilable to 2.06?
grayman

grayman

17.04.2018 16:09

administrator   ~0010375

Am I supposed to include the attachment in the next build?

I don't understand the relationship between 7377 and 7378. Are you saying they're mutually exclusive?

7377, 7378, and 7381 are in the latest build package. Do the problems they fix still appear?
nbohr1more

nbohr1more

17.04.2018 16:13

developer   ~0010376

Yes, please include the RenderSystem.cpp in the next build.

7738 requires 7377 and both require 7381.

r_showLightCount was still broken when I tested last night. I will test again tonight.
grayman

grayman

17.04.2018 16:23

administrator   ~0010377

I've committed the attached RenderSystem.cpp to SVN, and will include it in the next 2.06 package build.
stgatilov

stgatilov

17.04.2018 17:24

administrator   ~0010378

I'm sorry that it took so much time to understand why those "special instructions" were there.
I have look at the merged cpp file, and found the new code at the correct place (well, according to both my older instructions and a bit of common sense).
grayman

grayman

17.04.2018 17:46

administrator   ~0010379

Okay, good to hear.

Thanks.

Issue History

Date Modified Username Field Change
19.03.2018 16:10 user81 New Issue
19.03.2018 16:10 user81 File Added: Capture.JPG
20.03.2018 12:00 AluminumHaste Note Added: 0010116
20.03.2018 14:01 stgatilov Note Added: 0010119
20.03.2018 14:33 stgatilov File Added: Darkmod.cfg
20.03.2018 14:34 stgatilov Note Added: 0010121
20.03.2018 14:44 nbohr1more Note Added: 0010122
20.03.2018 15:12 AluminumHaste Note Added: 0010123
20.03.2018 15:23 stgatilov Note Added: 0010124
20.03.2018 15:51 nbohr1more Note Added: 0010125
20.03.2018 21:59 user81 File Added: Darkmod_bkd.cfg
20.03.2018 22:00 user81 Note Added: 0010130
20.03.2018 22:01 user81 Assigned To => duzenko
20.03.2018 22:01 user81 Status new => assigned
21.03.2018 02:53 stgatilov Note Added: 0010133
25.03.2018 15:15 duzenko Note Added: 0010158
25.03.2018 15:20 duzenko Note Edited: 0010158 View Revisions
25.03.2018 15:57 stgatilov Assigned To duzenko => stgatilov
25.03.2018 16:05 stgatilov Note Added: 0010159
25.03.2018 16:05 stgatilov Status assigned => resolved
25.03.2018 16:05 stgatilov Fixed in Version => TDM 2.06
25.03.2018 16:05 stgatilov Resolution open => fixed
09.04.2018 12:40 nbohr1more Note Added: 0010352
10.04.2018 01:51 nbohr1more Note Added: 0010355
10.04.2018 03:52 stgatilov Note Added: 0010356
13.04.2018 03:38 nbohr1more Note Added: 0010358
13.04.2018 03:39 nbohr1more File Added: thiefsden_2018-04-12_23.33.41.png
13.04.2018 03:39 nbohr1more Note Edited: 0010358 View Revisions
13.04.2018 03:50 nbohr1more Note Added: 0010359
13.04.2018 04:09 nbohr1more Note Added: 0010360
13.04.2018 04:43 nbohr1more Note Added: 0010363
13.04.2018 09:07 user81 Note Added: 0010364
16.04.2018 17:54 grayman Note Added: 0010367
16.04.2018 18:32 nbohr1more Note Added: 0010368
16.04.2018 18:37 grayman Note Added: 0010369
16.04.2018 19:17 nbohr1more Note Added: 0010370
16.04.2018 19:19 grayman Note Added: 0010371
16.04.2018 19:25 nbohr1more Note Added: 0010372
16.04.2018 19:38 grayman Note Added: 0010373
17.04.2018 03:55 nbohr1more File Added: RenderSystem.cpp
17.04.2018 03:57 nbohr1more Note Added: 0010374
17.04.2018 16:09 grayman Note Added: 0010375
17.04.2018 16:13 nbohr1more Note Added: 0010376
17.04.2018 16:23 grayman Note Added: 0010377
17.04.2018 17:24 stgatilov Note Added: 0010378
17.04.2018 17:46 grayman Note Added: 0010379
28.06.2018 08:18 nbohr1more Relationship added related to 0004612
