View Issue Details

IDProjectCategoryView StatusLast Update
0005186The Dark ModMappingpublic16.01.2021 04:16
ReporterDragofer Assigned Tostgatilov
PrioritynormalSeveritynormalReproducibilityN/A
Status feedbackResolutionopen
Product VersionTDM 2.08
Target VersionTDM 2.09Fixed in VersionTDM 2.09
Summary0005186: Make prefabs with rotation hacks comply with new rules
DescriptionWith new rules for the use of rotation hacks, mappers can no longer compile their maps if they place a prefab that contains rotation-hacked models, unless they have g_rotationhack 0. This is not the default value, so the mapper will have to use the console to change it, which may be unintuitive especially for newer mappers.

It may be necessary to identify all prefabs which use rotation hacked models and find ways to replace these models, preferrably without cluttering the main model list with rescaled models.

If there are too many affected prefabs a different solution may be needed.
Steps To ReproduceAn example is fireplace/small_round_furnace_openable.pfb, which uses firewood at 80% of its original size to fit inside the small furnace.
Additional InformationLink to thread on forums:
  https://forums.thedarkmod.com/index.php?/topic/20180-rotation-hack/&do=findComment&comment=445006

There is the full list of problematic prefabs.
TagsNo tags attached.

Relationships

related to 0004970 resolvedstgatilov Avoid problems with rotation-resized models

Activities

stgatilov

stgatilov

05.12.2020 13:21

administrator   ~0013103

TDM 2.09 will not stop mapper from dmapping a map with hack-rotated things.
However, there is still a warnings, so the problem is not gone completely.

The options are:
1) Add proxy models to problematic prefabs and replace hack-rotation with using them explicitly.
  The obvious downside is that DR won't handle them properly.
2) Rescale the models physically.
  There are only 65 such models, perhaps it could be done quickly with a right tool.
3) Disable dmap warning for func_static-s.
  Basically, with the latest incarnation of 0004970, hack-rotated entity is replaced with auto-generated model straight on player's machine.
  So from player's perspective, they should work perfectly as is.
Dragofer

Dragofer

04.01.2021 20:27

developer   ~0013363

Option 3 sounds quite palatable for solving this issue.

While option 2 wouldn't solve future rotation hacked prefabs, and option 1: I think proxy models are better used automatically, rather than something the mapper should deal with.
stgatilov

stgatilov

06.01.2021 12:37

administrator   ~0013402

Right now there is one warning for all func_static-s, which prints their number and a list of up to 10 random names.

Would it be OK if I change it from warning to ordinary printed message?
It will display with ordinary color (not red), and won't de repeated at the end of dmap.
Dragofer

Dragofer

06.01.2021 14:02

developer   ~0013406

Last edited: 06.01.2021 14:19

View 2 revisions

I suppose the purpose of the warnings is to encourage the mapper to fix the rotation-hacked models. But what I liked about your proxy-models being auto-generated on the player's machine at map start is that it seems to automatically fix the problem, so the mapper wouldn't need to do anything about them. That would remove the need for any kind of warnings/console output about rotation hacked models.

Otherwise, if the mapper should try to fix rotation-hacked models, itd probably be better to fix the prefabs in the TDM core (Option 1 or 2), rather than asking every mapper to fix the prefabs every time they use them. This avoids unnecessary work duplication.
stgatilov

stgatilov

06.01.2021 16:52

administrator   ~0013411

Last edited: 06.01.2021 16:53

View 3 revisions

I disabled warning in svn rev 9068.
The warning for entities of other classes remains.

I see two entities in stock prefabs which are hack-rotated and are not func_static-s:
  MerryChest5Handle in \prefabs\containers\openable\MerryChest5.pfb
  MerryChest9Handle in \prefabs\containers\openable\MerryChest9.pfb
They should be fixed manually.
Dragofer, could you do it?
Dragofer

Dragofer

07.01.2021 12:55

developer   ~0013418

Manually removed rotation-hacks from those 2 chest prefabs in 16069.

However, I noticed that there were also 2 rotation-hacked func_statics in the prefabs (locks) and they showed up as black boxes ingame (missing model). The console complained about not being able to open the .proxy models.
Dragofer

Dragofer

07.01.2021 12:58

developer   ~0013419

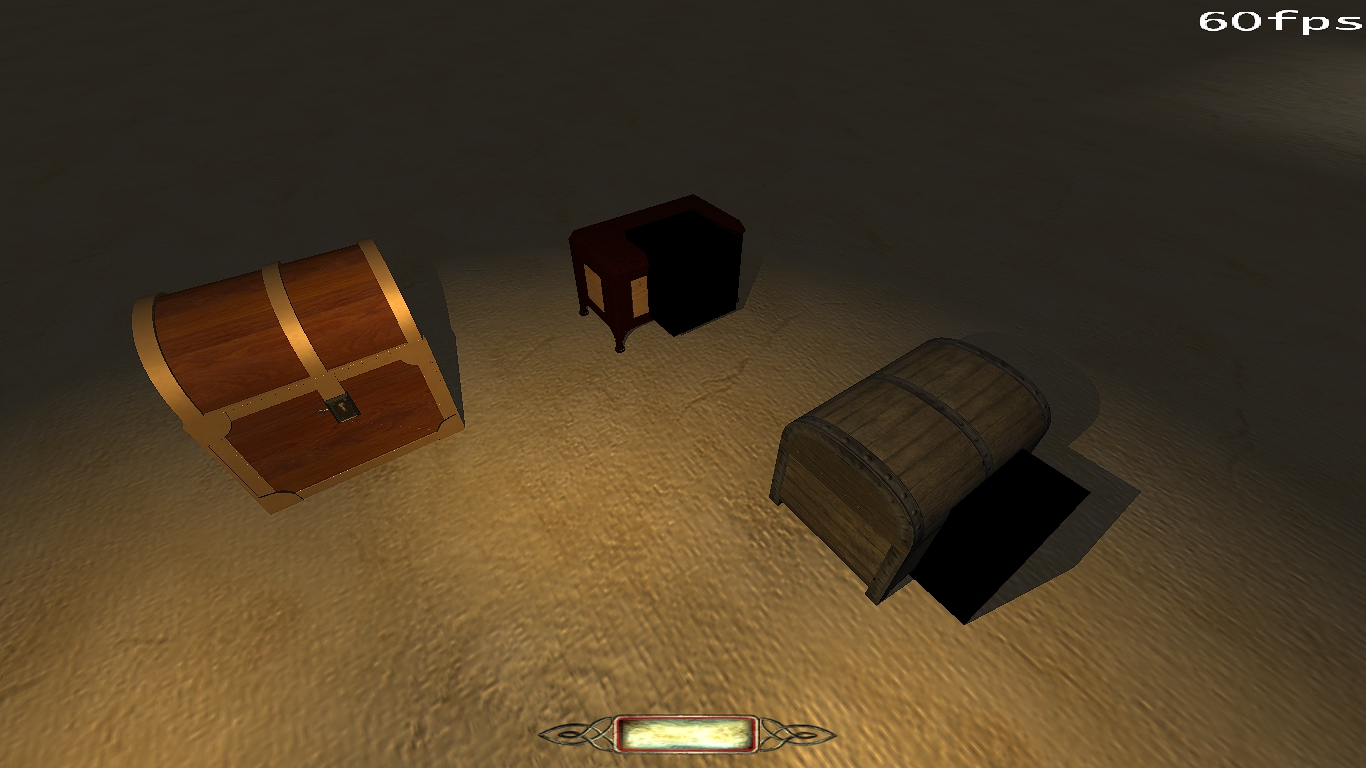

chest_merry.txt (13,353 bytes)
