Summary0005455: Prefab Chooser preview: improvements to initial view
Description- If the prefab author exported the prefab far away from the map's origin, the prefab might not show up at all in the preview.
- If the prefab contains something with a very large radius, i.e. a speaker or light, the whole prefab will appear very zoomed out, since the preview tries to capture the whole thing.
- Making the preview camera look more towards the north. This way, the preview would show the prefab (close to) the same way as it'll show up in orthoview. This would make it somewhat easier to deal with prefabs that come in 4 variants, one per direction.

These things make it more difficult to go through a list of prefabs to choose one, so it'd be neat if the Prefab Chooser automatically centered on the prefab's midpoint rather than 0,0,0, and disregarded the radius of lights and speakers when calculating the initial zoom level.
TagsNo tags attached.

Relationships

related to 0005502 acknowledged Broken rendering of prefabs in Prefab Chooser preview on AMD cards

Activities

Dragofer

Dragofer

24.12.2020 13:10

developer   ~0013189

Last edited: 24.12.2020 13:23

The ticket has been transformed successfully. Would probably have been better to just delete & create new, tbh.
Dragofer

Dragofer

17.01.2021 12:43

developer   ~0013475

Last edited: 17.01.2021 12:51

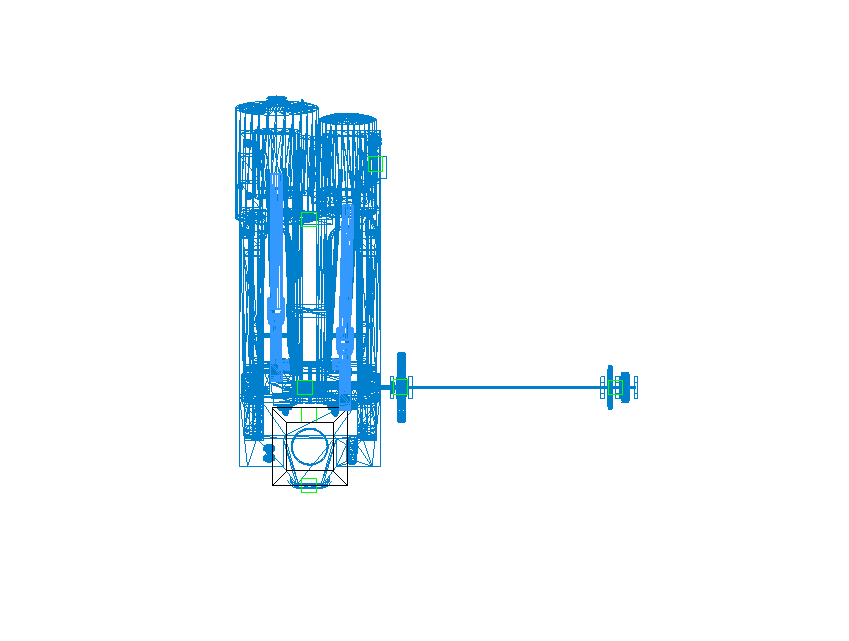

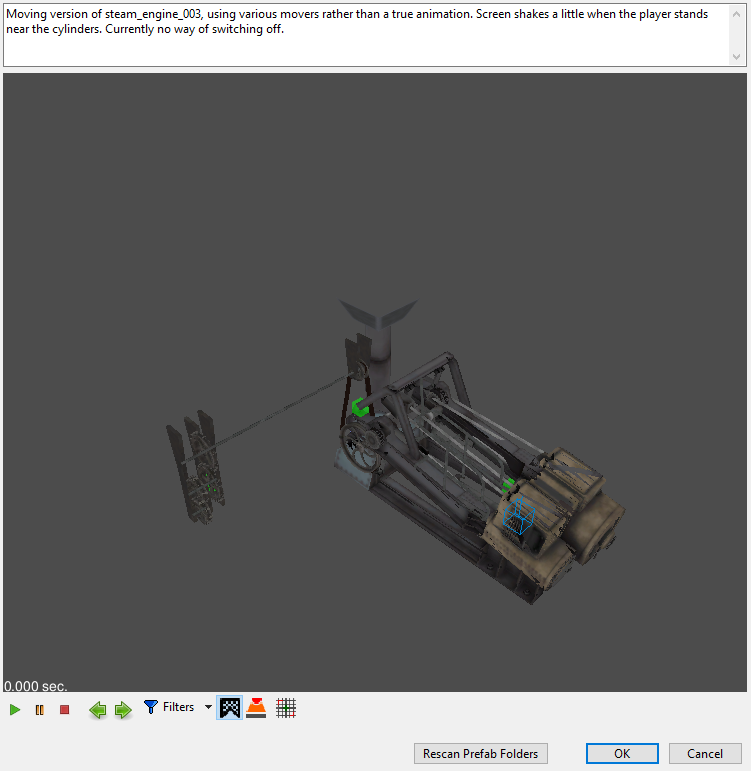

Another thing that I think could be helpful: making the preview camera look more towards the north. This way, the preview would show the prefab (close to) the same way as it'll show up in orthoview. This would make it somewhat easier to deal with prefabs that come in 4 variants, one per direction.

I've attached a comparison of what one currently sees in the preview, compared to how it ends up in orthoview, using the north-facing prefab for the new animated steam engine. There's a difference of maybe 150° between the 2, maybe a 30° difference would be better.
How it ends up in orthoview.png (21,722 bytes)
How it ends up in orthoview.png (21,722 bytes)
Dragofer

Dragofer

24.01.2021 21:43

developer   ~0013505

Last edited: 24.01.2021 21:49

One last comment during pre5: in pre4 I thought the camera's position was too high, so I suggested to lower it to a certain level, but tbh that feels too low now.

The sweet spot would probably be halfway between the pre4 and pre5 heights. I think that's also how the height was before 2.11.
