| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0005670 | The Dark Mod | Graphics | public | 15.07.2021 09:48 | 08.01.2025 03:42 |
| Reporter | duzenko | Assigned To | |||
| Priority | low | Severity | minor | Reproducibility | sometimes |
| Status | confirmed | Resolution | open | ||
| Platform | PC | OS | Windows | OS Version | 10 |
| Product Version | SVN | ||||
| Target Version | TDM 2.14 | ||||
| Summary | 0005670: Overbright pixels | ||||
| Description | It seems that the ambient interaction shader overbrights pixels sometimes | ||||

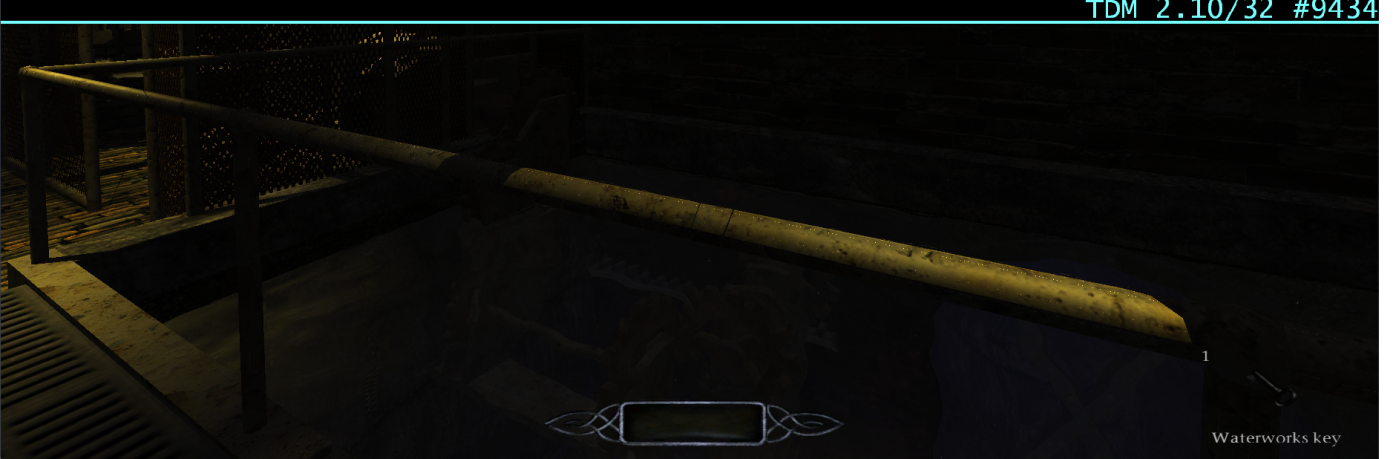

| Steps To Reproduce | Start NHAT - politics Go to the water station Observe pixels along the handrails tops | ||||
| Tags | No tags attached. | ||||
 |
This a basic core mod issue that you only see with func_static's. The workaround is to export them as models (.lwo/.ase) etc. |
 |
I had this mostly fixed in one of my shader mods by multiplying the vertexColor and lightColor and using the result as a min value so no pixel was ever brighter than that result. Unfortunately, lightColor is now controlled in a different shader than vertexColor so that approach cannot work here unless someone grants access to lightColor in tdm_interaction.glsl |
|
|
Hmm... changing the end of interaction.ambient.fs.glsl to this: float lcolmax = max(lightColor.r , max(lightColor.g , lightColor.b)) ; float diffusemax = max(params[var_DrawId].diffuseColor.r, max(params[var_DrawId].diffuseColor.g, params[var_DrawId].diffuseColor.b)); FragColor = min((vec4(lightColor * ssao * interactionColor.rgb, interactionColor.a)), ( lcolmax * diffusemax )); Significantly reduces occurrences of this artifact. Not so much in NHAT but in the hills of the animated grass map the sparklies are basically invisible Too may additional instructions ? |
 |
I looked at the issue at "3474.72 -6912.92 -2218.91 34.5 44.6 0.0". I believe these bright lines are due to dmap precision problems: some vertexes get displaced slightly, causing surface to overlap itself. Perfectly self-overlapping surface gets lit twice of course. |
 |

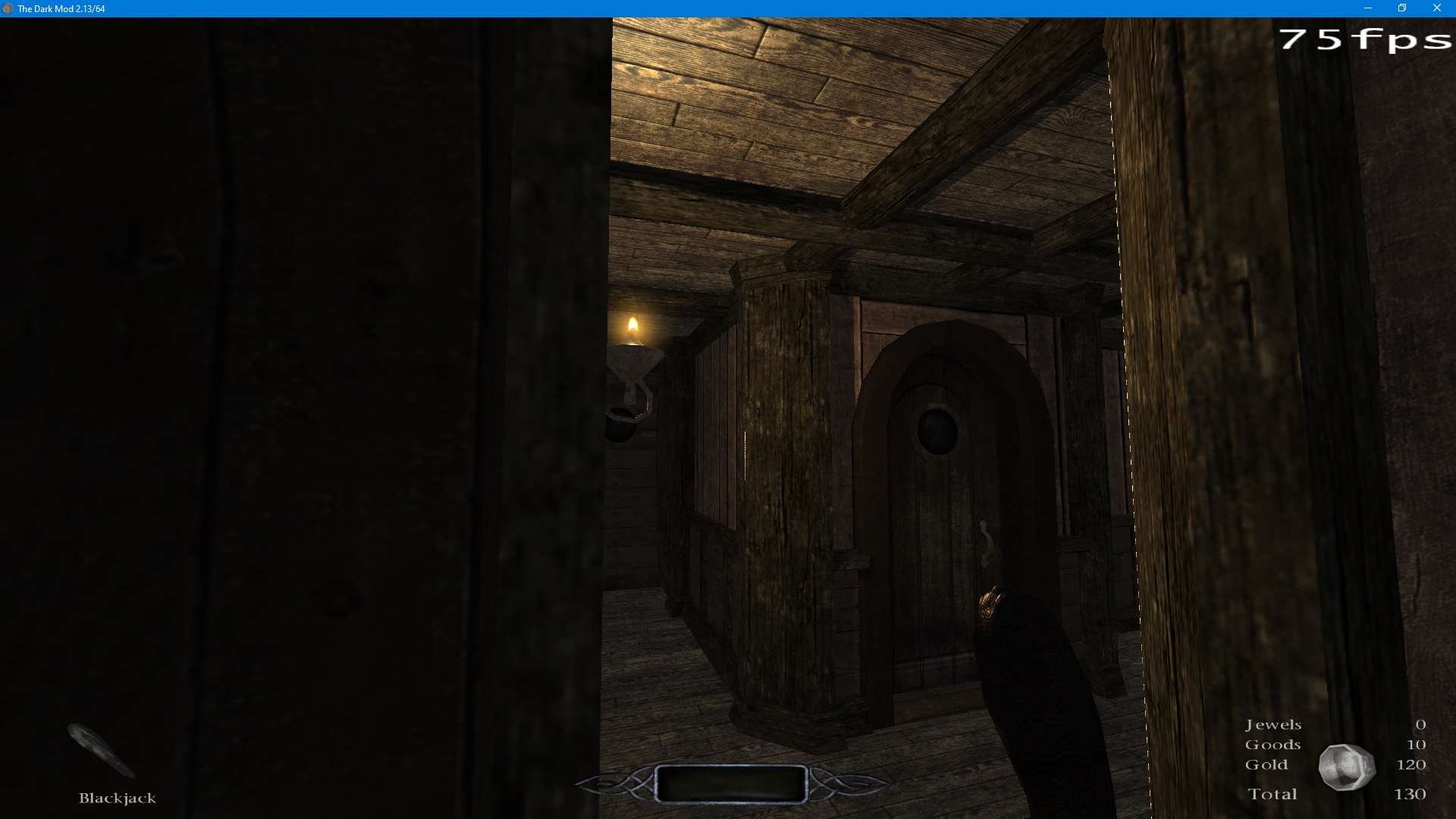

Perilous Refuge shows it even on wall corners GVP 91.41 -313.13 205.26 -5.2 157.9 -0.0 |
