View Issue Details

IDProjectCategoryView StatusLast Update
0005843The Dark ModCodingpublic27.11.2022 22:24
Reporterstgatilov Assigned Tostgatilov
PrioritynormalSeveritynormalReproducibilityalways
Status confirmedResolutionopen
Product VersionTDM 2.09
Summary0005843: Dmap computes wrong shadows on version 4 of NHAT
DescriptionDmap precomputes shadow volumes for world geometry.
These volumes are shown when r_useOptimizedShadows is enabled and stencial shadows are used.

Testing shows that new version of "No Honor Among Thieves" has a lot of broken shadows near the start of the first mission.
It seems that they go away if one disabled the aforementioned cvar.
Steps To ReproduceSimple way to reproduce is available on assets SVN:
1) dmap noflood 5843_dmap_lantern_patch_grid.map
2) map 5843_dmap_lantern_patch_grid.map
3) Make sure stencil shadows are enabled, soft shadows are disabled

Alternative approach is:
1) map 5843_dmap_lantern_patch_grid.map
2) r_useOptimizedShadows 0; r_useTurboShadow 0; reloadModels
3) Make sure stencil shadows are enabled, soft shadows are disabled

Check how shadows look: you'll see thin black/light lines moving around on a fully static scene.
TagsNo tags attached.

Activities

Bikerdude

Bikerdude

17.12.2021 15:40

reporter   ~0014595

Once the xmas contest map is done I can take a look and see which light/s or entities have the "r_useOptimizedShadows" on and remove it.
stgatilov

stgatilov

24.01.2022 16:06

administrator   ~0014691

No difference on "dmap_compatibility 209"
It is quite likely that the issue started happening long time ago...
stgatilov

stgatilov

24.01.2022 16:26

administrator   ~0014692

Last edited: 24.01.2022 16:29

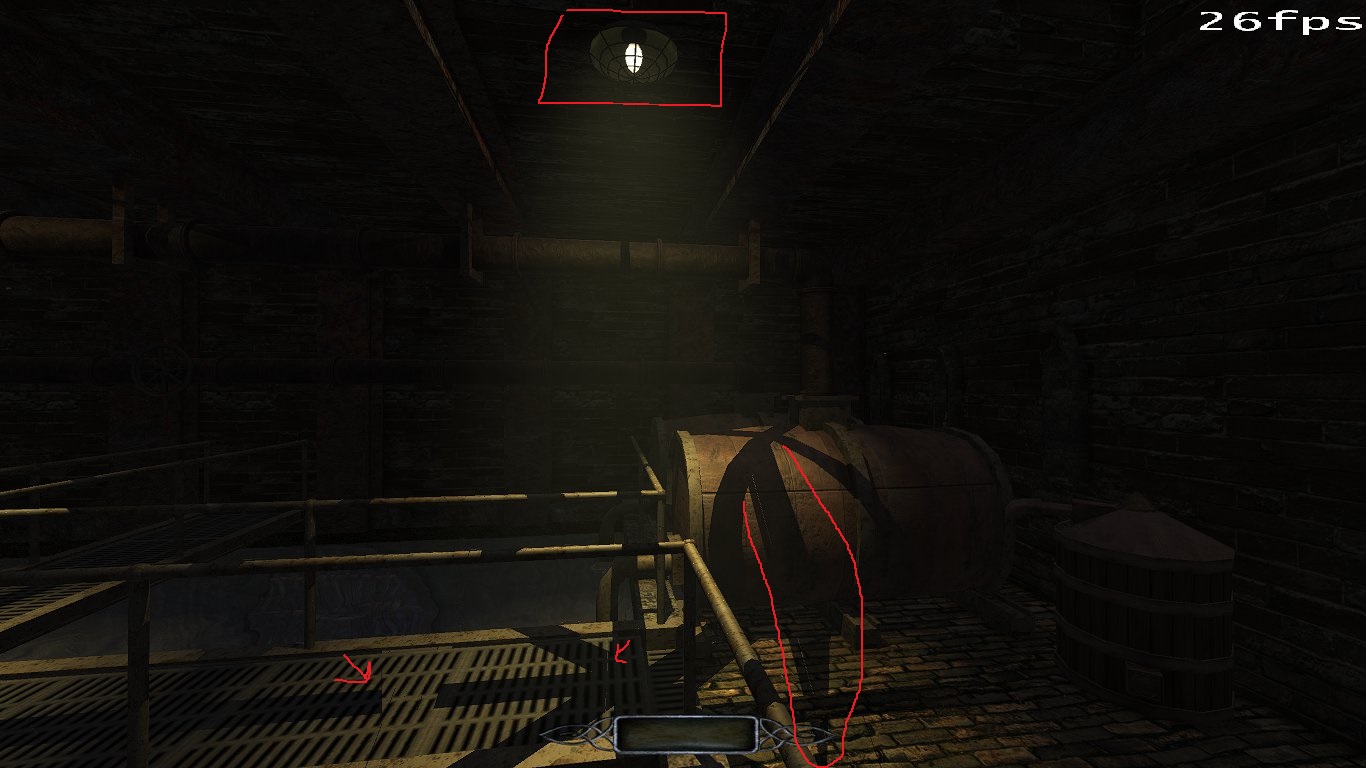

The issue happens on the kind of lights shown on the screenshot.

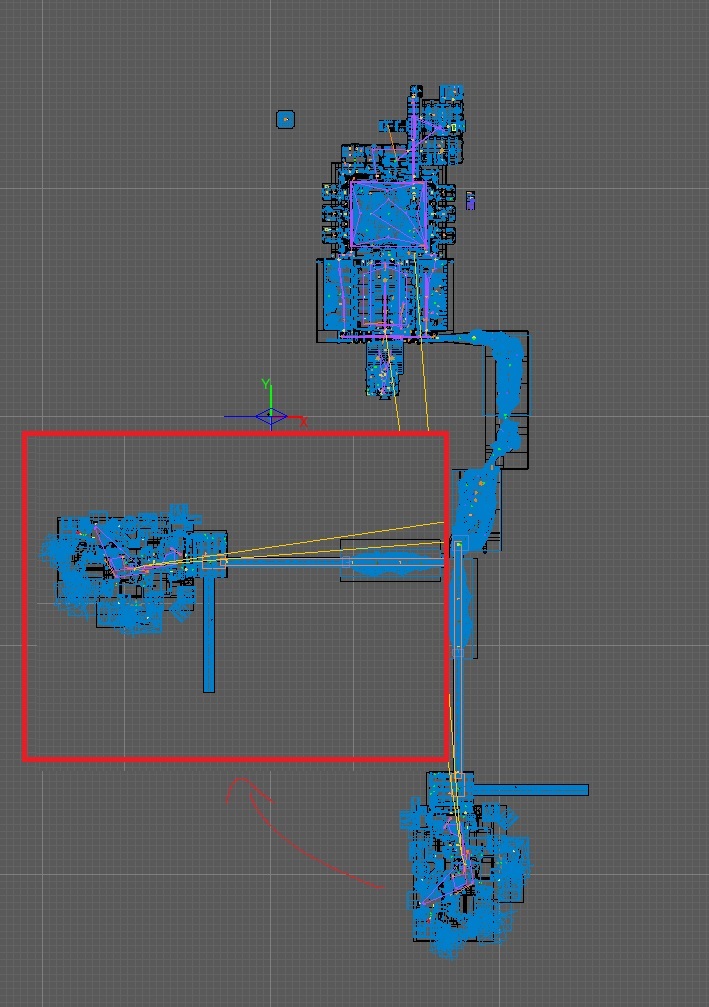

It seems that it only happens in the starting area (maybe because it has larger coords).
I flew around the map and did not find any more issues, even where seemingly the same lights are used.

The problem here is the grid occluder, which consists of many thin wires very close to the light source.
Dmap processing makes them slightly non-closed, which can have ill influence of the generated shadow volumes.
It is still interesting why only precomputed shadows suffer from this problem.
The runtime shadows are usually generated with another algorithm (turbo shadows), maybe it is more resistant to problems of occluding geometry.

By the way, I saw similar problems on Painter's Wife in the sewers section (large round vertical room with lots of water) happening on the same kind of light source.
I think we should get rid of it somehow... is it a prefab?

I suppose several workarounds can fix the problem:
1) Convert the grid into model (or better create a brand new model which is perfectly closed).
2) Set "noPrelight" "1" spawnarg on the light entity to stop dmap from precomputing its shadows (runtime generation seems to work fine).
stgatilov

stgatilov

17.09.2022 07:13

administrator   ~0015250

Last edited: 27.11.2022 14:46

Ok, the problem is in non-turbo shadow volume generation, not in dmap.
Because if I set:
  r_useOptimizedShadows 0
  r_useTurboShadow 0
  reloadModels
Then the engine regenerated shadows in runtime using the non-turbo algorithm, and I see the same issues.
But with turbo algorithm (which uses the same model) shadow volume is perfect.
Bikerdude

Bikerdude

17.09.2022 08:50

reporter   ~0015252

Thanks for looking into this fella.
nbohr1more

nbohr1more

15.11.2022 02:39

developer   ~0015423

Moving to 2.12

Workarounds exist:

1) Convert the grid into model (or better create a brand new model which is perfectly closed).
2) Set "noPrelight" "1" spawnarg on the light entity to stop dmap from precomputing its shadows (runtime generation seems to work fine).
Bikerdude

Bikerdude

15.11.2022 07:37

reporter   ~0015429

I have used that model in other maps (WIS, SLL) and dont have this issue with the shadows.

But can update NHAT if this is simpler.
nbohr1more

nbohr1more

15.11.2022 13:30

developer   ~0015430

The leaks are probably dependent on position and whether the coordinates are hitting a precision limit.

Yes, feel free to update NHAT for now.

All this said, this is the sort of artifact that an erode shader on the shadow FBO would clean up...

https://forums.thedarkmod.com/index.php?/topic/20664-improving-shadow-map-performance/&do=findComment&comment=478958
stgatilov

stgatilov

27.11.2022 09:46

administrator   ~0015477

I extracted a small testmap 5843_dmap_lantern_patch_grid.map.
I verified that the same issue happens even on TDM 2.00.

So something is bad with the particular use case:
  * large coordinates?
  * patch is not closed?
stgatilov

stgatilov

27.11.2022 10:38

administrator   ~0015478

I got some limited reduction of leaks by reducing epsilon in R_ChopWinding, but thin lines remain.

To be honest, the whole piece of code for shadow volume generation (non-turbo one) cries to me "we did not know what topological consistency is!".
I don't think just fixing a few issues will help here.

Two ways to proceed:
  1) Switch this whole piece of code to double precision + reduce epsilon.
   That won't be easy, but should help.
   Of course, it would be slower for realtime processing, but since 0005886 we only use turbo shadows in realtime.
  2) Rewrite the whole stuff with guaranteed topological consistency.
   That's a lot of work (and fun), I don't want to waste so much time on an issue that has been present forever but people somehow avoid it.
Bikerdude

Bikerdude

27.11.2022 12:45

reporter   ~0015480

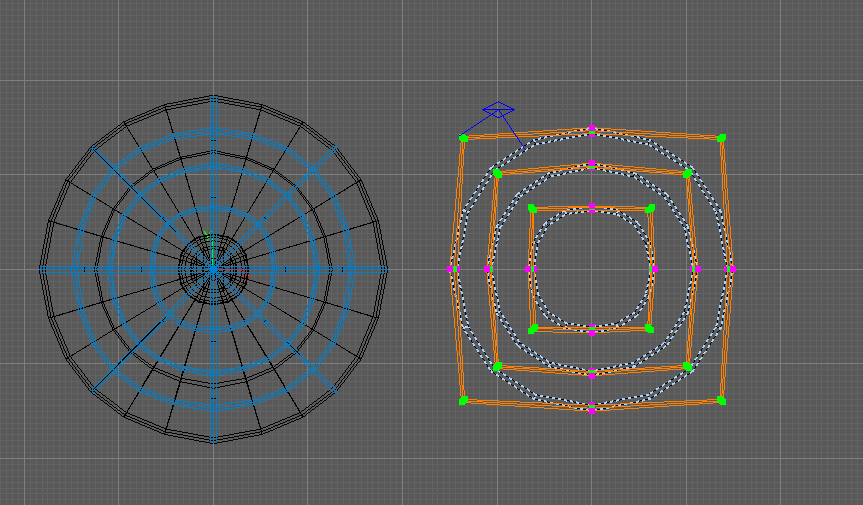

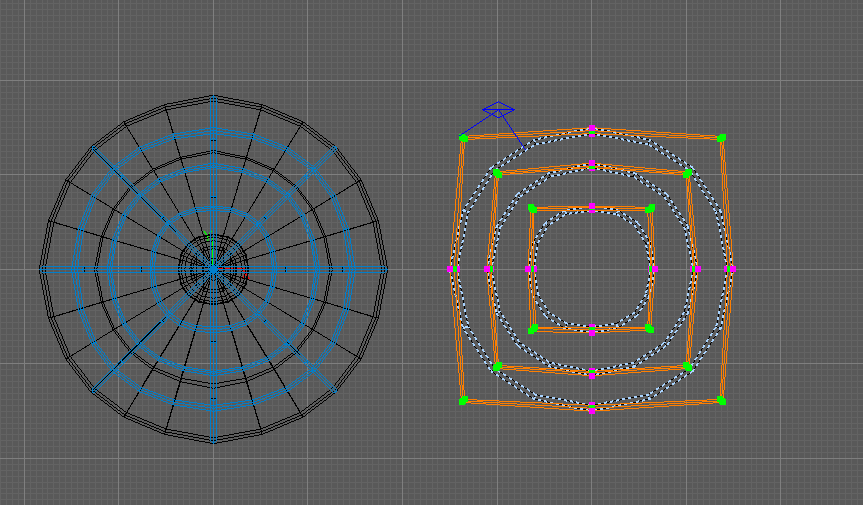

Checking NHAT I see its the original worldspawn patch, where as in WIS/SLL I have used the model. So it maybe that only NAH needs updating.

It may also explain why I am not seeing this issue in WIS/SLL..?
