0006017: If possible, show material shader used when selecting func_static patches - The Dark Mod Bugtracker

ID	Project	Category	View Status	Date Submitted	Last Update

0006017	DarkRadiant	Shader System	public	17.07.2022 12:03	25.08.2022 03:36

Reporter	Frost_Salamander	Assigned To
Priority	normal	Severity	normal	Reproducibility	always
Status	closed	Resolution	no change required
Platform	PC	OS	Windows	OS Version	10
Product Version	3.0.0
Fixed in Version	3.0.0

Summary	0006017: If possible, show material shader used when selecting func_static patches
Description	If you have a patch that you've converted to a func_static, I can't find a way to show what material has been applied to it. When you select it, nothing shows up in the surface inspector. If you click the 'Choose shader...' dialogue next to the empty 'Shader' dialogue box, the currently applied material isn't auto-selected for you. If you press cancel because you don't want to try and search for the material, a 'shader not found' material gets applied that you then can't get rid of by pressing 'undo', so you have to then search for the material you used (if you can remember it) and re-apply it. Put simply, ideally this would function the same way as if you select the a worldspawn patch (func_static brushes support this as well). Doing that, the material will show up in the Shader box in the surface inspector so you can easily tell what it is, and change it if needed.
Steps To Reproduce	1. Create a patch, texture it with something and convert to a func_static. 2. With the patch deselected, select it and open the surface inspector. 3. Note that the 'Shader' field is empty. 4. Click the 'Choose shader using the shader selection dialogue' button. 5. The dialogue opens, but the currently applied material is not auto-selected. At this point I usually just want to click 'cancel' and use the media browser instead because I prefer it. 6. click 'cancel. A 'shader not found' material will now get applied to the patch. 6. Press undo - nothing happens. You are now stuck with no material on your patch.
Tags	No tags attached.

Obsttorte 17.07.2022 18:56 developer ~0015043	Control+Shift+right Mouse Button let's you pick shaders from surfaces.

Frost_Salamander 18.07.2022 12:09 reporter ~0015064	On my install, I use Control+Shift+left mouse button to do that - is that the same thing? That works for worldspawn and func_static brushes, but doesn't for patches. Control+Shift+right mouse button does nothing for me. What command should that be mapped to?

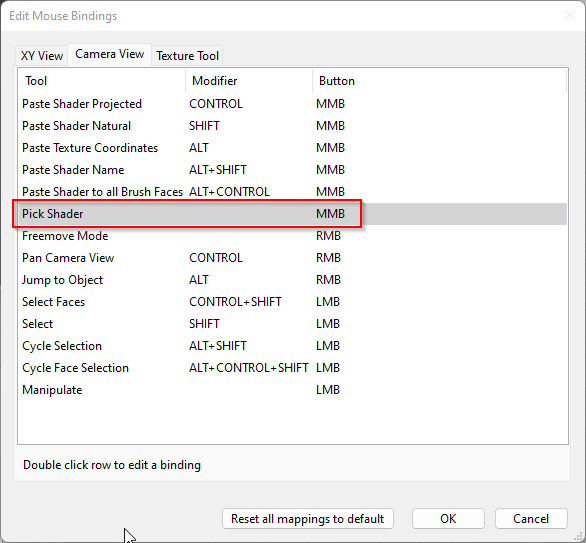

greebo 19.08.2022 05:37 administrator ~0015181	By default, we're talking about the Pick Shader command, in the Edit > Mouse Bindings... dialog. It should pick the texture when you click it in the camera view. grafik.png (32,659 bytes) grafik.png (32,659 bytes)

Frost_Salamander 24.08.2022 17:05 reporter ~0015207	Yeah that works - I see that if I do that, the material gets selected in the media browser. Can close.

Date Modified	Username	Field	Change
17.07.2022 12:03	Frost_Salamander	New Issue
17.07.2022 12:05	Frost_Salamander	Steps to Reproduce Updated
17.07.2022 13:22	Frost_Salamander	Description Updated
17.07.2022 18:56	Obsttorte	Note Added: 0015043
18.07.2022 12:09	Frost_Salamander	Note Added: 0015064
19.08.2022 05:37	greebo	Note Added: 0015181
19.08.2022 05:37	greebo	File Added: grafik.png
19.08.2022 05:37	greebo	Status	new => feedback
24.08.2022 17:05	Frost_Salamander	Note Added: 0015207
24.08.2022 17:05	Frost_Salamander	Status	feedback => new
25.08.2022 03:36	greebo	Status	new => closed
25.08.2022 03:36	greebo	Resolution	open => no change required
25.08.2022 03:36	greebo	Fixed in Version	=> 3.0.0
