0006041: Renderer doesn't take "translucent" keyword into account

ID	Project	Category	View Status	Date Submitted	Last Update

0006041	DarkRadiant	Renderer	public	31.07.2022 10:14	13.01.2024 05:32

Reporter	Dragofer	Assigned To	greebo
Priority	normal	Severity	normal	Reproducibility	always
Status	closed	Resolution	fixed
Product Version	3.0.0
Target Version	3.3.0	Fixed in Version	3.3.0

Summary	0006041: Renderer doesn't take "translucent" keyword into account
Description	Toggling the "translucent" global keyword in the Advanced tab > Global Settings seems to have no effect on the preview - it's still fully opaque. I believe this should have the same effect as having 0.5 alpha?
Tags	No tags attached.

greebo 04.09.2022 07:18 administrator ~0015230 Last edited: 04.09.2022 07:18	The "translucent" keyword just sets the material coverage to translucent, which means the engine won't try to auto-detect the coverage. Being marked as translucent has several implications: any translucent material is implicitly noshadows, it doesn't contribute to the depth fill buffer pass (which is the main cause for the resulting translucent effect) and it affects a couple of other checks and flags in the renderer I didn't fully explore. DR recognises the translucent keyword and calculates the correct opaque-ness of a material, but during rendering this is not fully respected yet.

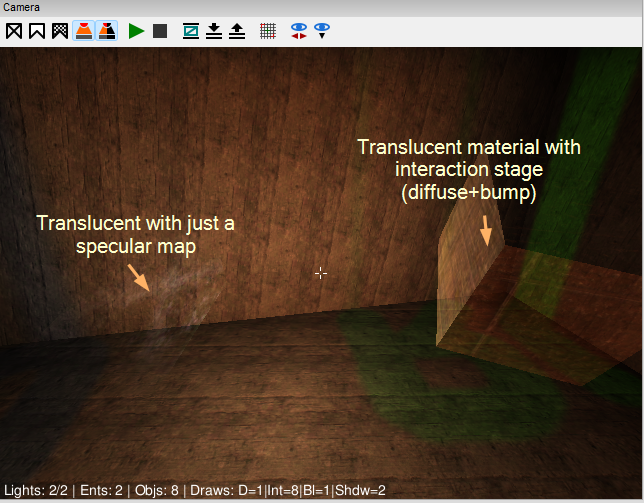

greebo 04.09.2022 12:59 administrator ~0015232	grafik.png (522,527 bytes)

DarkRadiant: master 23503c8b 04.09.2022 12:13 greebo Details Diff	0006041: Translucent materials don't fill the depth buffer	Affected Issues 0006041
	mod - radiantcore/rendersystem/backend/OpenGLShader.cpp	Diff File
DarkRadiant: master e55ea90f 04.09.2022 12:13 greebo Details Diff	0006041: Add unit test checking coverage of a translucent material with an interaction stage	Affected Issues 0006041
	mod - test/Materials.cpp	Diff File
	mod - test/resources/tdm/materials/parsertest.mtr	Diff File
DarkRadiant: master 85c0a334 04.09.2022 12:24 greebo Details Diff	0006041: An explicit "translucent" keyword will determine the material coverage to MC_TRANSLUCENT.	Affected Issues 0006041
	mod - radiantcore/shaders/ShaderTemplate.cpp	Diff File
DarkRadiant: master 7734ee83 04.09.2022 12:30 greebo Details Diff	0006041: Setting or removing the "translucent" keyword should re-evaluate a material's coverage	Affected Issues 0006041
	mod - radiantcore/shaders/ShaderTemplate.h	Diff File
	mod - test/Materials.cpp	Diff File
DarkRadiant: master 7092105f 04.09.2022 12:46 greebo Details Diff	0006041: Setting the "translucent" keyword implies noshadows	Affected Issues 0006041
	mod - radiantcore/shaders/ShaderTemplate.h	Diff File
	mod - test/Materials.cpp	Diff File
DarkRadiant: master 08b67981 04.09.2022 12:55 greebo Details Diff	0006041: Lock the noshadows flag when translucent is set	Affected Issues 0006041
	mod - radiantcore/shaders/ShaderTemplate.h	Diff File
	mod - test/Materials.cpp	Diff File

Date Modified	Username	Field	Change
31.07.2022 10:14	Dragofer	New Issue
31.07.2022 15:05	greebo	Status	new => acknowledged
06.08.2022 15:22	greebo	Category	GUI => Renderer
06.08.2022 15:22	greebo	Summary	Material Editor: preview doesn't take "translucent" keyword into account => Renderer doesn't take "translucent" keyword into account
04.09.2022 07:13	greebo	Status	acknowledged => confirmed
04.09.2022 07:18	greebo	Note Added: 0015230
04.09.2022 07:18	greebo	Note Edited: 0015230
04.09.2022 12:56	greebo	Assigned To	=> greebo
04.09.2022 12:56	greebo	Status	confirmed => assigned
04.09.2022 12:56	greebo	Target Version	=> 3.3.0
04.09.2022 12:58	greebo	Changeset attached	=> DarkRadiant master 23503c8b
04.09.2022 12:58	greebo	Changeset attached	=> DarkRadiant master e55ea90f
04.09.2022 12:58	greebo	Changeset attached	=> DarkRadiant master 85c0a334
04.09.2022 12:58	greebo	Changeset attached	=> DarkRadiant master 7734ee83
04.09.2022 12:58	greebo	Changeset attached	=> DarkRadiant master 7092105f
04.09.2022 12:58	greebo	Changeset attached	=> DarkRadiant master 08b67981
04.09.2022 12:59	greebo	Status	assigned => resolved
04.09.2022 12:59	greebo	Resolution	open => fixed
04.09.2022 12:59	greebo	Fixed in Version	=> 3.3.0
04.09.2022 12:59	greebo	Note Added: 0015232
04.09.2022 12:59	greebo	File Added: grafik.png
13.01.2024 05:32	greebo	Status	resolved => closed
