0006048: Material Editor: allow to change preview background

ID	Project	Category	View Status	Date Submitted	Last Update

0006048	DarkRadiant	GUI	public	31.07.2022 11:21	13.01.2024 05:31

Reporter	Dragofer	Assigned To	greebo
Priority	normal	Severity	normal	Reproducibility	N/A
Status	closed	Resolution	fixed
Product Version	3.0.0
Target Version	3.1.0	Fixed in Version	3.1.0

Summary	0006048: Material Editor: allow to change preview background
Description	As far as I can see, there's no way to change the background material used in the preview scene. Mappers might like to change this in order to thematically better match what they're working on (would also be suitable for being remembered from the previous session - 0006045). It's possible mappers might choose the same background as the material they're working on. So maybe the background should be updated, too, whenever a change is made to its material.
Tags	No tags attached.

greebo 31.07.2022 15:48 administrator ~0015101	The only way to change the material used in the preview "room" can be changed by editing the doom3.game or darkmod.game files: <materialPreview> <defaultRoomMaterial value="textures/darkmod/stone/brick/blocks_brown" /> <defaultLightDef value="light_torchflame" /> </materialPreview> I assume you're hoping for an option to pick the material in the UI itself?

Dragofer 31.07.2022 16:08 developer ~0015103	Yeah, I think picking the material from the UI would be best since it's a straightforward way to get a better idea of what the material will look like in the intended environment. Maybe the "Light Properties" tab could be renamed to "Preview Scene Properties" and expanded with a background material choice.

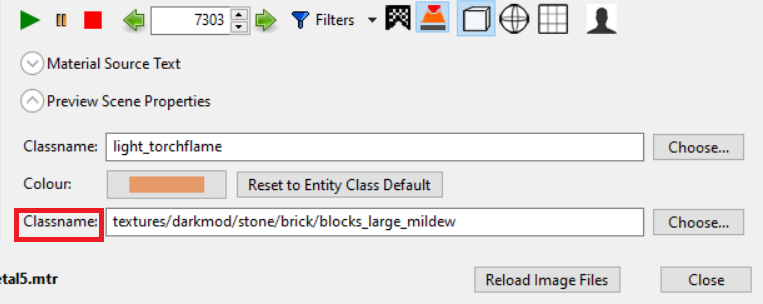

Dragofer 21.08.2022 20:08 developer ~0015198	Confirmed fixed in 3.1, but I noticed that the material shader field is still called "classname". Kind of too trivial to open a new ticket just for this. Untitled.png (48,123 bytes) Untitled.png (48,123 bytes)

DarkRadiant: master 3c099d32 31.07.2022 16:53 greebo Details Diff	0006048: Fix unhandled decl type exception	Affected Issues 0006048
	mod - include/idecltypes.h	Diff File
DarkRadiant: master d2dd67fb 31.07.2022 16:56 greebo Details Diff	0006048: MaterialPreview allows setting the room material. Start setting up the MaterialEditor controls to support this	Affected Issues 0006048
	mod - install/ui/materialeditor.fbp	Diff File
	mod - install/ui/materialeditor.xrc	Diff File
	mod - radiant/ui/materials/editor/MaterialEditor.cpp	Diff File
	mod - radiant/ui/materials/editor/MaterialEditor.h	Diff File
	mod - radiant/ui/materials/editor/MaterialPreview.cpp	Diff File
	mod - radiant/ui/materials/editor/MaterialPreview.h	Diff File
DarkRadiant: master f7a228dd 31.07.2022 17:06 greebo Details Diff	0006048: Wire up select button to choose the material of the test room	Affected Issues 0006048
	mod - radiant/ui/materials/editor/MaterialEditor.cpp	Diff File

Date Modified	Username	Field	Change
31.07.2022 11:21	Dragofer	New Issue
31.07.2022 11:21	Dragofer	Relationship added	related to 0006045
31.07.2022 12:05	Dragofer	Relationship added	related to 0006050
31.07.2022 15:05	greebo	Status	new => acknowledged
31.07.2022 15:48	greebo	Status	acknowledged => feedback
31.07.2022 15:48	greebo	Note Added: 0015101
31.07.2022 16:08	Dragofer	Note Added: 0015103
31.07.2022 16:08	Dragofer	Status	feedback => new
31.07.2022 16:08	Dragofer	Status	new => acknowledged
31.07.2022 16:08	Dragofer	Status	acknowledged => feedback
31.07.2022 16:27	greebo	Status	feedback => confirmed
31.07.2022 16:56	greebo	Assigned To	=> greebo
31.07.2022 16:56	greebo	Status	confirmed => assigned
31.07.2022 16:56	greebo	Target Version	=> 3.1.0
31.07.2022 17:06	greebo	Changeset attached	=> DarkRadiant master 3c099d32
31.07.2022 17:06	greebo	Changeset attached	=> DarkRadiant master d2dd67fb
31.07.2022 17:06	greebo	Changeset attached	=> DarkRadiant master f7a228dd
31.07.2022 17:08	greebo	Status	assigned => resolved
31.07.2022 17:08	greebo	Resolution	open => fixed
31.07.2022 17:08	greebo	Fixed in Version	=> 3.1.0
21.08.2022 20:08	Dragofer	Note Added: 0015198
21.08.2022 20:08	Dragofer	File Added: Untitled.png
13.01.2024 05:31	greebo	Status	resolved => closed

related to	0006045	closed	greebo	Material Editor: doesn't remember settings from previous session
related to	0006050	closed	greebo	Material Editor: suboptimal preview for cubeMap materials
