View Issue Details

IDProjectCategoryView StatusLast Update
0006081DarkRadiantRendererpublic13.01.2024 05:32
ReporterFrost_Salamander Assigned Togreebo
PrioritynormalSeveritynormalReproducibilityalways
Status closedResolutionfixed
PlatformPCOSWindowsOS Version10
Product Version3.1.0
Target Version3.3.0Fixed in Version3.3.0
Summary0006081: Some materials aren't displayed correctly
DescriptionSome materials aren't displayed correctly in DR.

These show up as black when used to texture an object:

- rough_wood_brown/rough_wood_brown_ns
- rough_wood_darkbrown/rough_wood_darkbrown_ns
- rough_wood_sand/rough_wood_sand_ns

This shows up as transparent:

- textures/darkmod/window/lamp_glass_moonlit_opaque

There may be others, but those are the ones I've noticed so far.

Steps To Reproduce1. Add a brush to a map and texture with any of the above materials
2. Observe the texture is black (or transparent in the case of the glass material)
TagsNo tags attached.

Activities

greebo

greebo

03.09.2022 14:51

administrator   ~0015224

I can confirm the rough wood textures are showing as black in fullbright render mode. The glass material doesn't appear as transparent in fullbright mode (it's transparent in lighting mode only).
Frost_Salamander

Frost_Salamander

03.09.2022 15:12

reporter   ~0015225

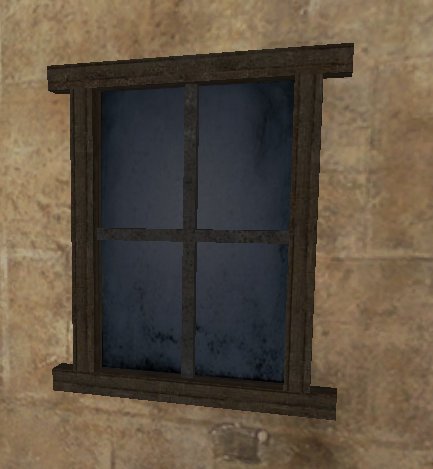

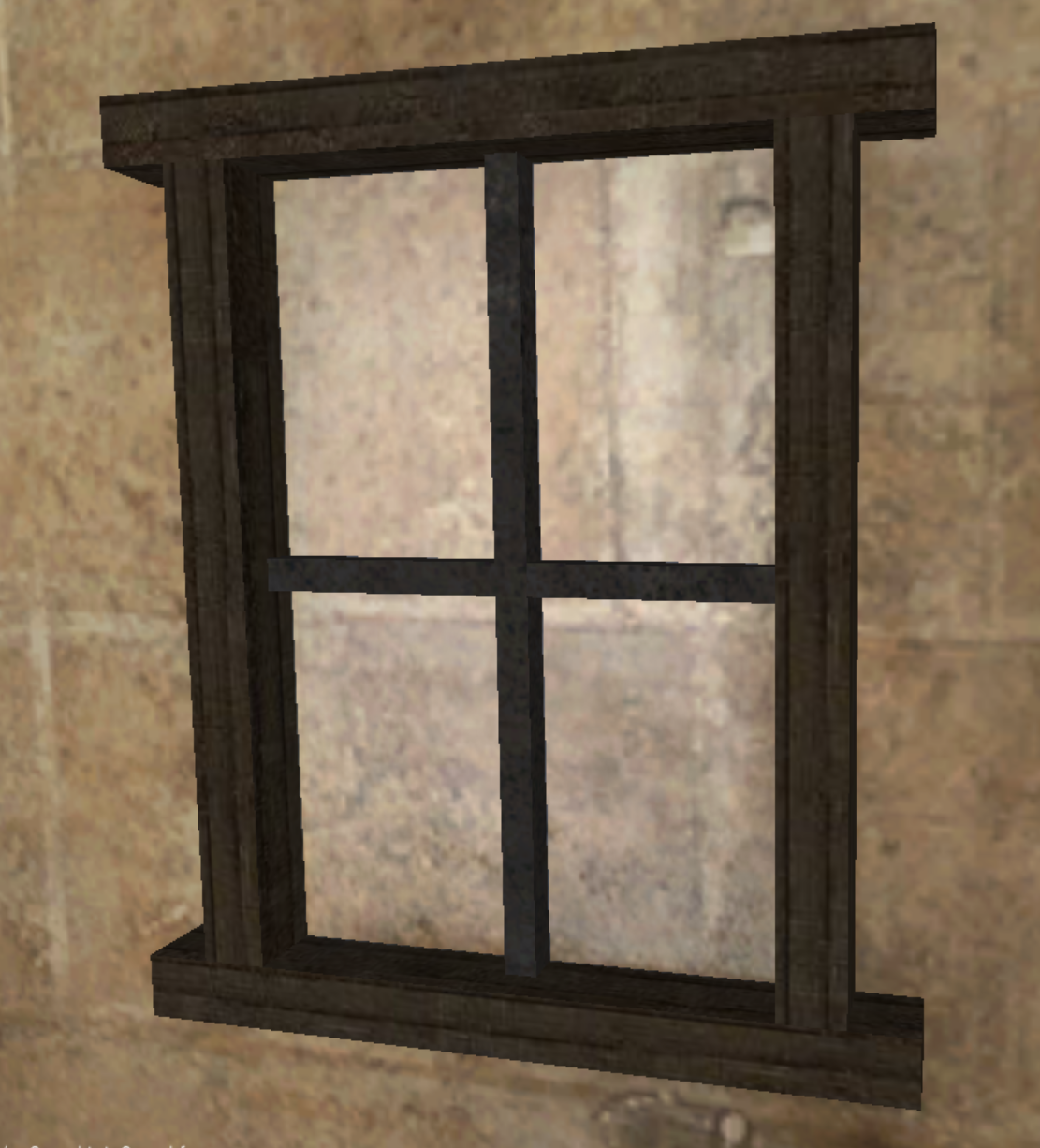

Odd - the glass does for me. See the below screen shots. Same map, same window, just different versions of DR.
greebo

greebo

03.09.2022 17:16

administrator   ~0015226

Last edited: 03.09.2022 17:17

I could fix the first problems with rough_wood. The moonlit opaque material is wrong in all renderer modes in DarkRadiant, it should appear as opaque and have an interaction pass (triggered by the single specular stage).
greebo

greebo

04.09.2022 05:36

administrator   ~0015227

The rgb expressions are now actively suppressed when rendering the editor preview pass.
Materials with just a single specular map (like the moonlit opaque one) are now properly treated as interaction materials.
greebo

greebo

04.09.2022 05:44

administrator   ~0015229

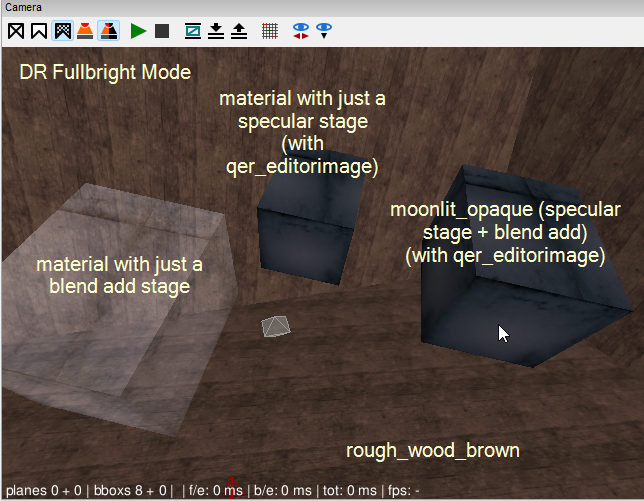

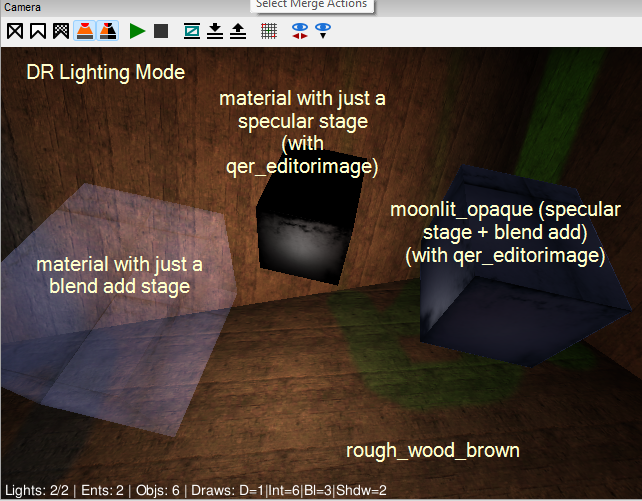

Comparison Screenies
Frost_Salamander

Frost_Salamander

04.09.2022 09:54

reporter   ~0015231

awesome - thank you!
