0006110: Readable Editor displays "shader not found" in view

ID	Project	Category	View Status	Date Submitted	Last Update

0006110	DarkRadiant	Map Editing	public	27.09.2022 04:40	13.01.2024 05:32

Reporter	joebarnin	Assigned To	greebo
Priority	normal	Severity	normal	Reproducibility	always
Status	closed	Resolution	fixed
Product Version	3.3.0
Target Version	3.4.0	Fixed in Version	3.4.0

Summary	0006110: Readable Editor displays "shader not found" in view

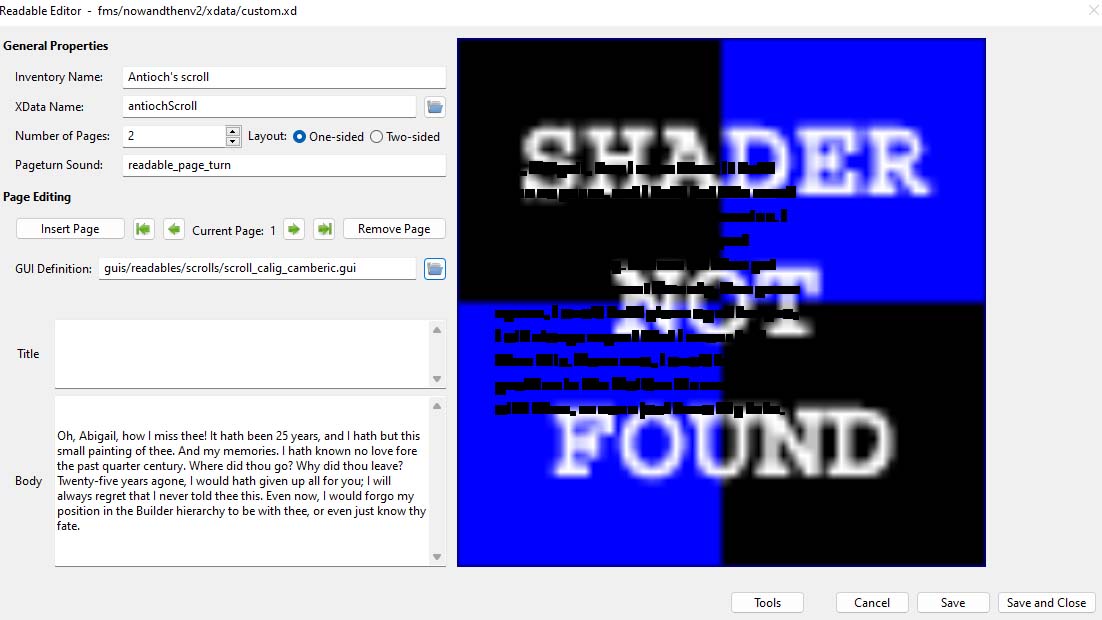

Description	When I select a readable object and do the menu command Entity > Readable Editor, the dialog appears but the right hand side doesn't display the WYSIWYG view of the readable. Instead it displays "shader not found". Any text you add shows up on the WYSIWYG view, but barely readable. Note, the readable looks fine in the DarkMod, it's only DR that has the problem.
Steps To Reproduce	Create a readable entity in your map. Select it, and do Entity > Readable Editor.
Additional Information	With the Readable Editor open, select the GUI Definition browser (the little folder icon). Close the dialogs, then check your console log (and darkradiant.log). You'll see a bunch of errors like so: Unknown token encountered in GUI: rect-100 Unknown token encountered in GUI: , Unknown token encountered in GUI: -10 Unknown token encountered in GUI: , Unknown token encountered in GUI: 500 Unknown token encountered in GUI: , Unknown token encountered in GUI: 400 Unknown token encountered in GUI: rect-100 Unknown token encountered in GUI: , Unknown token encountered in GUI: -10 Unknown token encountered in GUI: , Unknown token encountered in GUI: 500 Unknown token encountered in GUI: , Unknown token encountered in GUI: 400 Unknown token encountered in GUI: rect-100 Unknown token encountered in GUI: , Unknown token encountered in GUI: -10 Unknown token encountered in GUI: , Unknown token encountered in GUI: 500 Unknown token encountered in GUI: , Unknown token encountered in GUI: 400 Unknown token encountered in GUI: rect-100 Unknown token encountered in GUI: , Unknown token encountered in GUI: -10 Unknown token encountered in GUI: , Unknown token encountered in GUI: 500 Unknown token encountered in GUI: , Unknown token encountered in GUI: 400 Unknown token encountered in GUI: rect-100 Unknown token encountered in GUI: , Unknown token encountered in GUI: -10 Unknown token encountered in GUI: , Unknown token encountered in GUI: 500 Unknown token encountered in GUI: , Unknown token encountered in GUI: 400 Unknown token encountered in GUI: rect-100 Unknown token encountered in GUI: , Unknown token encountered in GUI: -10 Unknown token encountered in GUI: , Unknown token encountered in GUI: 500 Unknown token encountered in GUI: , Unknown token encountered in GUI: 400 Unknown token encountered in GUI: rect-100 Unknown token encountered in GUI: , Unknown token encountered in GUI: -10 Unknown token encountered in GUI: , Unknown token encountered in GUI: 500 Unknown token encountered in GUI: , Unknown token encountered in GUI: 400 Unknown token encountered in GUI: rect-100 Unknown token encountered in GUI: , Unknown token encountered in GUI: -10 Unknown token encountered in GUI: , Unknown token encountered in GUI: 500 Unknown token encountered in GUI: , Unknown token encountered in GUI: 400 Unknown token encountered in GUI: rect-100 Unknown token encountered in GUI: , Unknown token encountered in GUI: -10 Unknown token encountered in GUI: , Unknown token encountered in GUI: 500 Unknown token encountered in GUI: , Unknown token encountered in GUI: 400 Unknown token encountered in GUI: rect-100 Unknown token encountered in GUI: , Unknown token encountered in GUI: -10 Unknown token encountered in GUI: , Unknown token encountered in GUI: 500 Unknown token encountered in GUI: , Unknown token encountered in GUI: 400 Unknown token encountered in GUI: rect-100 Unknown token encountered in GUI: , Unknown token encountered in GUI: -10 Unknown token encountered in GUI: , Unknown token encountered in GUI: 500 Unknown token encountered in GUI: , Unknown token encountered in GUI: 400 Unknown token encountered in GUI: rect-100 Unknown token encountered in GUI: , Unknown token encountered in GUI: -10 Unknown token encountered in GUI: , Unknown token encountered in GUI: 500 Unknown token encountered in GUI: , Unknown token encountered in GUI: 400 Unknown token encountered in GUI: rect-100 Unknown token encountered in GUI: , Unknown token encountered in GUI: -10 Unknown token encountered in GUI: , Unknown token encountered in GUI: 500 Unknown token encountered in GUI: , Unknown token encountered in GUI: 400 Unknown token encountered in GUI: _inventory_map_code_ Couldn't find include file: guis/readables/rotten_paper_nancy.gui in guis/readables/rotten_paper_nancy_world.gui Unknown token encountered in GUI: 1 Unknown token encountered in GUI: { Unknown token encountered in GUI: 1 Unknown token encountered in GUI: { Unknown token encountered in GUI: 1 Unknown token encountered in GUI: { Unknown token encountered in GUI: 1 Unknown token encountered in GUI: { Unknown token encountered in GUI: 1 Unknown token encountered in GUI: { Unknown token encountered in GUI: 1 Unknown token encountered in GUI: { Unknown token encountered in GUI: 1 Unknown token encountered in GUI: { Unknown token encountered in GUI: 1 Unknown token encountered in GUI: { Unknown token encountered in GUI: 1 Unknown token encountered in GUI: { I searched for "rect-100" and found several in *.gui files. For example, book_bamberg_gothic_both_curl.gui has: windowDef rightPageBackground { WORLD_SCALE rect-100, -10, 500, 400 background "guis/assets/readables/books/book_rightpage_curled_01" matcolor 1, 1, 1, 0 } Note, no space after "rect" and before the "-100"
Tags	No tags attached.
Attached Files	readable.jpg (100,344 bytes) readable.jpg (100,344 bytes)

DarkRadiant: master cecee3b2 06.10.2022 17:41 greebo Details Diff	0006110: Add unit test checking the layer configuration of materials constructed from raw texture files	Affected Issues 0006110
	mod - test/Materials.cpp	Diff File
DarkRadiant: master 4bf6abca 06.10.2022 17:51 greebo Details Diff	0006110: Ensure the shader template is parsed before adding layers	Affected Issues 0006110
	mod - radiantcore/shaders/ShaderTemplate.cpp	Diff File
DarkRadiant: codetokeniser 0039f97b 08.10.2022 07:02 greebo Details Diff	0006110: Add CodeTokeniser unit test, confirm that the preprocessor is working	Affected Issues 0006110
	mod - test/CMakeLists.txt	Diff File
	add - test/CodeTokeniser.cpp	Diff File
	add - test/resources/tdm/guis/parse_test2.gui	Diff File
	add - test/resources/tdm/guis/parse_test_include2.guicode	Diff File
	mod - tools/msvc/Tests/Tests.vcxproj	Diff File
	mod - tools/msvc/Tests/Tests.vcxproj.filters	Diff File
DarkRadiant: codetokeniser 8d4f6504 08.10.2022 07:34 greebo Details Diff	0006110: Add CodeTokeniser tests, including the problematic scenario "rect-100"	Affected Issues 0006110
	mod - test/CodeTokeniser.cpp	Diff File
DarkRadiant: codetokeniser fb2483f7 08.10.2022 07:41 greebo Details Diff	0006110: Another (failing) CodeTokeniser test	Affected Issues 0006110
	mod - test/CodeTokeniser.cpp	Diff File
DarkRadiant: codetokeniser 66a86024 08.10.2022 08:00 greebo Details Diff	0006110: Syntax refactoring	Affected Issues 0006110
	mod - libs/parser/CodeTokeniser.h	Diff File
DarkRadiant: codetokeniser 56eea77b 08.10.2022 08:26 greebo Details Diff	0006110: Add a couple of operator characters to the list of kept delimiters	Affected Issues 0006110
	mod - libs/parser/CodeTokeniser.h	Diff File
	mod - plugins/dm.gui/gui/GuiManager.cpp	Diff File
	mod - test/CodeTokeniser.cpp	Diff File
DarkRadiant: codetokeniser 5034a6e7 08.10.2022 09:12 greebo Details Diff	0006110: More CodeTokeniser unit tests checking quotes and quote escaping, plus a large test covering macro expansion	Affected Issues 0006110
	mod - libs/parser/CodeTokeniser.h	Diff File
	mod - test/CodeTokeniser.cpp	Diff File
DarkRadiant: codetokeniser 84d1613c 08.10.2022 12:21 greebo Details Diff	0006110: Add more CodeTokeniser unit tests	Affected Issues 0006110
	mod - libs/parser/CodeTokeniser.h	Diff File
	mod - test/CodeTokeniser.cpp	Diff File
DarkRadiant: codetokeniser cd01f3fc 08.10.2022 16:12 greebo Details Diff	0006110: Add operators whitelist to CodeTokeniser, to be supplied in the constructor Add specialised GuiTokeniser which declares just the supported GUI script operators.	Affected Issues 0006110
	mod - libs/parser/CodeTokeniser.h	Diff File
	add - libs/parser/GuiTokeniser.h	Diff File
	mod - plugins/dm.gui/gui/GuiManager.cpp	Diff File
	mod - test/CodeTokeniser.cpp	Diff File
	mod - tools/msvc/libs.vcxproj	Diff File
	mod - tools/msvc/libs.vcxproj.filters	Diff File
DarkRadiant: codetokeniser d388acef 08.10.2022 16:30 greebo Details Diff	0006110: Pass list of recognised operators to tokeniser function	Affected Issues 0006110
	mod - libs/parser/CodeTokeniser.h	Diff File
DarkRadiant: codetokeniser a8efd81d 09.10.2022 04:52 greebo Details Diff	0006110: First operator matching algorithm	Affected Issues 0006110
	mod - libs/parser/CodeTokeniser.h	Diff File
	mod - test/CodeTokeniser.cpp	Diff File
DarkRadiant: codetokeniser e74873b8 09.10.2022 07:02 greebo Details Diff	0006110: Improve operator recognition	Affected Issues 0006110
	mod - libs/parser/CodeTokeniser.h	Diff File
	mod - test/CodeTokeniser.cpp	Diff File
DarkRadiant: codetokeniser b4565861 09.10.2022 09:54 greebo Details Diff	0006110: Improve macro expansion code	Affected Issues 0006110
	mod - libs/parser/CodeTokeniser.h	Diff File
	mod - test/CodeTokeniser.cpp	Diff File

Date Modified	Username	Field	Change
27.09.2022 04:40	joebarnin	New Issue
27.09.2022 04:40	joebarnin	File Added: readable.jpg
27.09.2022 04:47	greebo	Status	new => acknowledged
06.10.2022 16:59	greebo	Status	acknowledged => confirmed
06.10.2022 17:40	greebo	Assigned To	=> greebo
06.10.2022 17:40	greebo	Status	confirmed => assigned
06.10.2022 17:40	greebo	Target Version	=> 3.4.0
06.10.2022 17:51	greebo	Changeset attached	=> DarkRadiant master cecee3b2
06.10.2022 17:51	greebo	Changeset attached	=> DarkRadiant master 4bf6abca
08.10.2022 09:14	greebo	Changeset attached	=> DarkRadiant codetokeniser 0039f97b
08.10.2022 09:14	greebo	Changeset attached	=> DarkRadiant codetokeniser 8d4f6504
08.10.2022 09:14	greebo	Changeset attached	=> DarkRadiant codetokeniser fb2483f7
08.10.2022 09:14	greebo	Changeset attached	=> DarkRadiant codetokeniser 66a86024
08.10.2022 09:14	greebo	Changeset attached	=> DarkRadiant codetokeniser 56eea77b
08.10.2022 09:14	greebo	Changeset attached	=> DarkRadiant codetokeniser 5034a6e7
09.10.2022 15:14	greebo	Changeset attached	=> DarkRadiant codetokeniser 84d1613c
09.10.2022 15:14	greebo	Changeset attached	=> DarkRadiant codetokeniser cd01f3fc
09.10.2022 15:14	greebo	Changeset attached	=> DarkRadiant codetokeniser d388acef
09.10.2022 15:14	greebo	Changeset attached	=> DarkRadiant codetokeniser a8efd81d
09.10.2022 15:14	greebo	Changeset attached	=> DarkRadiant codetokeniser e74873b8
09.10.2022 15:14	greebo	Changeset attached	=> DarkRadiant codetokeniser b4565861
09.10.2022 16:15	greebo	Status	assigned => resolved
09.10.2022 16:15	greebo	Resolution	open => fixed
09.10.2022 16:15	greebo	Fixed in Version	=> 3.4.0
13.01.2024 05:32	greebo	Status	resolved => closed
