0006198: Model Selector widgets are cut off and flicker constantly on Linux

ID	Project	Category	View Status	Date Submitted	Last Update

0006198	DarkRadiant	GUI	public	20.12.2022 21:12	01.02.2023 05:54

Reporter	orbweaver	Assigned To	orbweaver
Priority	normal	Severity	major	Reproducibility	always
Status	resolved	Resolution	fixed
Platform	Linux	OS	Ubuntu	OS Version	22.04
Product Version	3.7.0
Target Version	3.8.0	Fixed in Version	3.8.0

Summary	0006198: Model Selector widgets are cut off and flicker constantly on Linux

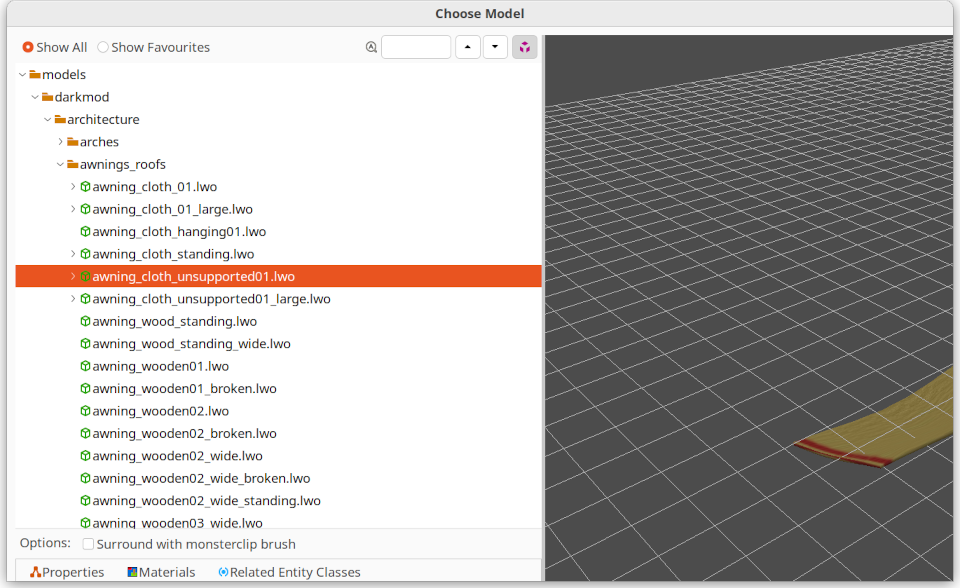

Description	GUI elements in the Model Selector flicker and resize constantly while moving and clicking with the mouse, and are often cut off by the window edges, leaving the buttons inaccessible (see screenshot). Sometimes there is an empty black bar along the button of the window. Seen in Git master and the 3.7.0 FlatPak.
Tags	No tags attached.
Attached Files	modelselector.png (291,418 bytes)

orbweaver 21.12.2022 21:05 developer ~0015601	Git bisect (followed by a manual revert to confirm) indicate that this is the commit which introduced the problem. It is not clear why a simple reparent operation would cause flickering GUI elements, unless there is some quirk about how wxGTK handles reparenting. commit f303f95f030fb1c08e48ea358fce9ccdbceae156 (refs/bisect/bad) Author: codereader <greebo@angua.at> Date: Sat Nov 12 19:04:11 2022 +0100 Make sure the ModelSelector is properly parented. By the time the instance is constructed the mainframe's top level window is still a nullptr.

orbweaver 10.01.2023 21:05 developer ~0015750	Fixed in a99bd537c293fc6eba6072bd904d2fcfa4049ad5

DarkRadiant: master a99bd537 10.01.2023 20:53 orbweaver Details Diff	0006198: populate ModelSelector after mainframe is constructed For a reason which isn't clear, the Reparent() call causes problems on GTK whereby the GUI elements inside the ModelSelector constantly resize and flicker on mouse motion. We now avoid the need for a Reparent() altogether by calling Populate() in response to signal_MainFrameConstructed(), which still allows the model selector to populate itself but also guarantees that a valid main frame pointer will be available.	Affected Issues 0006198
	mod - radiant/ui/UserInterfaceModule.cpp	Diff File
	mod - radiant/ui/modelselector/ModelSelector.cpp	Diff File

Date Modified	Username	Field	Change
20.12.2022 21:12	orbweaver	New Issue
20.12.2022 21:12	orbweaver	Status	new => assigned
20.12.2022 21:12	orbweaver	Assigned To	=> orbweaver
20.12.2022 21:12	orbweaver	File Added: modelselector.png
21.12.2022 21:05	orbweaver	Note Added: 0015601
10.01.2023 21:05	orbweaver	Status	assigned => resolved
10.01.2023 21:05	orbweaver	Resolution	open => fixed
10.01.2023 21:05	orbweaver	Fixed in Version	=> 3.8.0
10.01.2023 21:05	orbweaver	Note Added: 0015750
01.02.2023 05:54	orbweaver	Changeset attached	=> DarkRadiant master a99bd537
