I've attached a patch that works for me. I changed the "textscale" base size from 32 to 28. r16727-fix-objectives-title.diff (378 bytes) |
 |

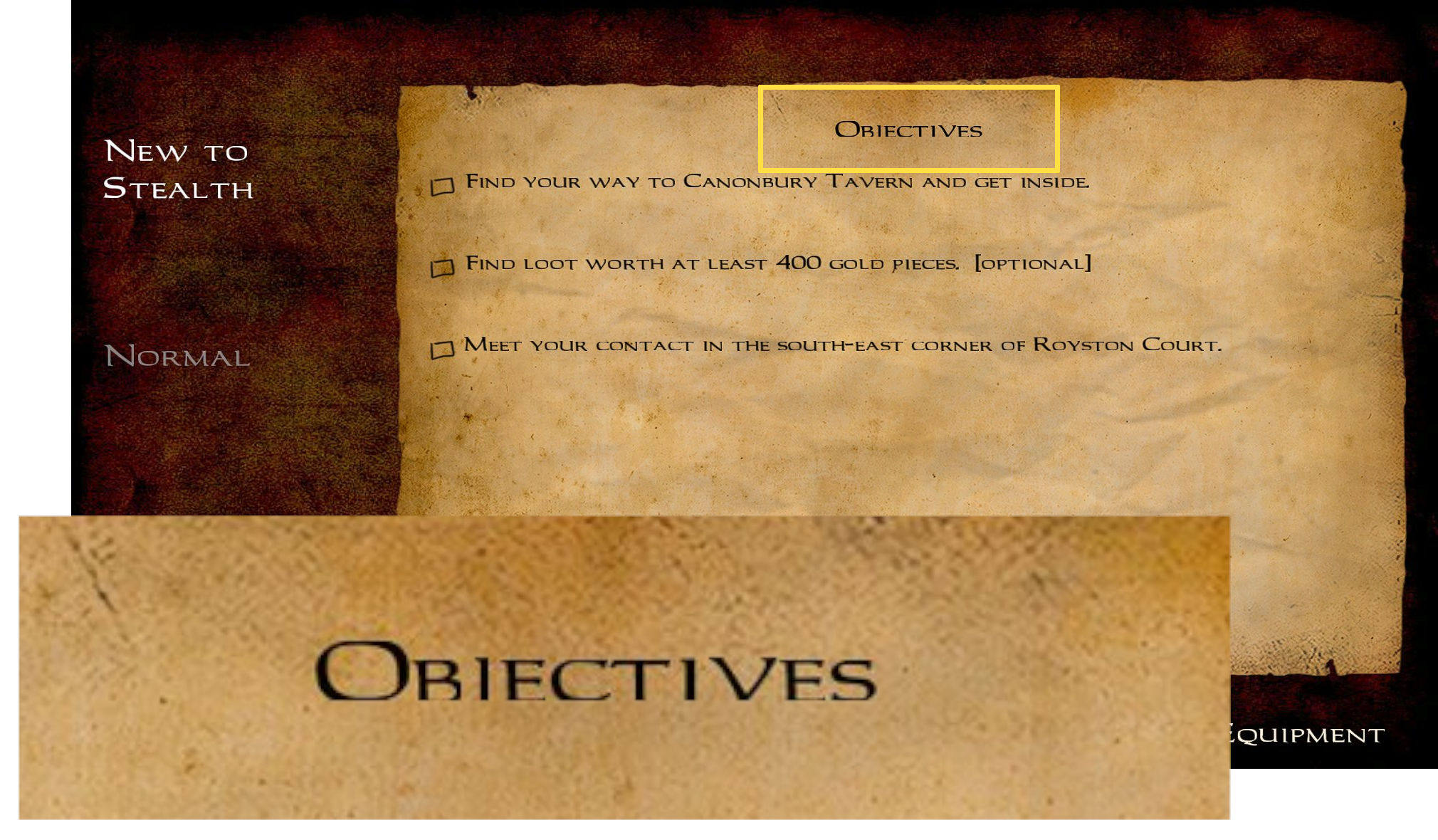

Happens in 2.09 too, so this is not some breakage from recent changes in objectives. |
|
|
I wonder why it even happens. It seems that the size of the title window is computed with some kind of "if" sequence, and the match for too small scale should be corrected. |
|
|
Font scaling is not a simple smooth thing. It seems that there are 3 prerendered raster fonts, and the UI engine selects the most fitting one for every particular case. void idDeviceContext::SetFontByScale(float scale) { if (scale <= gui_smallFontLimit.GetFloat()) { useFont = &activeFont->fontInfoSmall; activeFont->maxHeight = activeFont->maxHeightSmall; activeFont->maxWidth = activeFont->maxWidthSmall; } else if (scale <= gui_mediumFontLimit.GetFloat()) { useFont = &activeFont->fontInfoMedium; activeFont->maxHeight = activeFont->maxHeightMedium; activeFont->maxWidth = activeFont->maxWidthMedium; } else { useFont = &activeFont->fontInfoLarge; activeFont->maxHeight = activeFont->maxHeightLarge; activeFont->maxWidth = activeFont->maxWidthLarge; } } At the "critical" scale factor, I get scale ~= 0.3 for Objectives text. That's exactly the value of gui_mediumFontLimit, so at this moment engine switches from large to medium font. The max sizes vary depending on which version of font is used: maxHeightSmall 13 maxWidthSmall 15 maxHeightMedium 28 maxWidthMedium 32 maxHeightLarge 51 maxWidthLarge 63 I think the idea is that Large is 2x larger than Medium, and Medium is 2x larger than Small. But the "max" sizes are different: 51 < 28 * 2. |
|
|

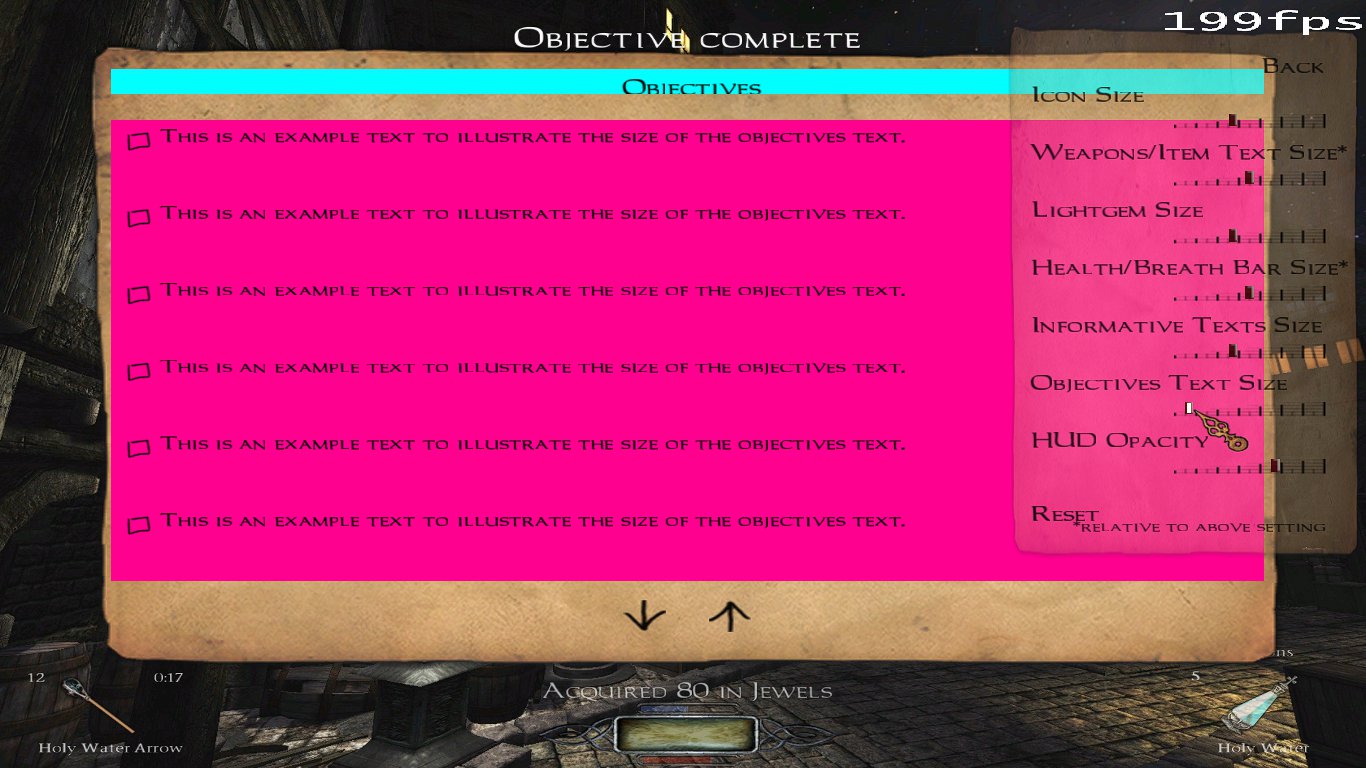

Here is how the objectives GUI look if I paint every window with its background. As you see, there is plenty of space between title text and the first objective. I guess it would be better to use a bit more of that space than to make text smaller? guisize.jpg (181,362 bytes) |
|
|

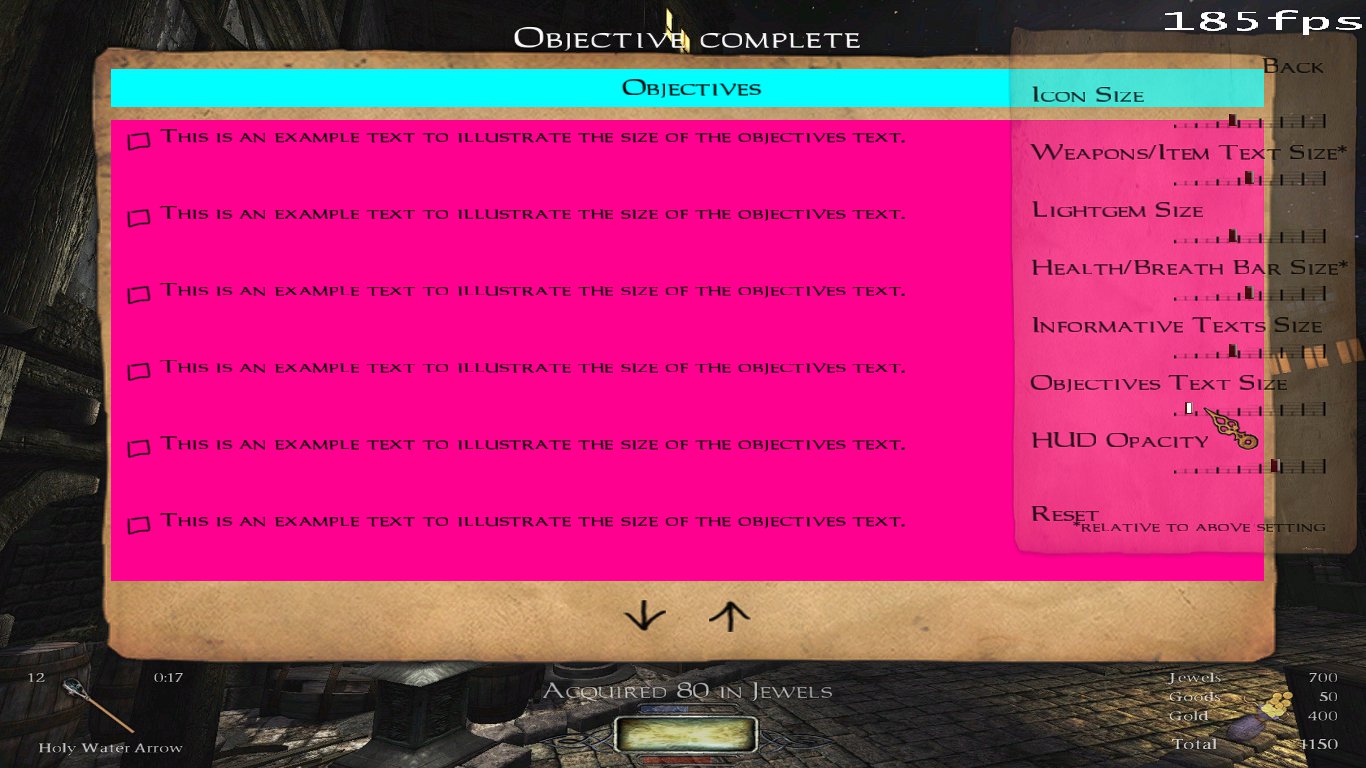

If I change height of ObjectivesTitle from 20 * OBJ_SIZE_MULT to 30 * OBJ_SIZE_MULT, then I get much better picture. guisize_30.jpg (180,544 bytes) |
|
|
Committed the vertical size increase in svn rev 16741. |
|
|
Looks great! |
- Anonymous
