Im now getting the crash with 2.11a aswell https://drive.google.com/file/d/1cwgYkXb1L0p2DlylI81199amMTXu23ja/view?usp=sharing |
 |

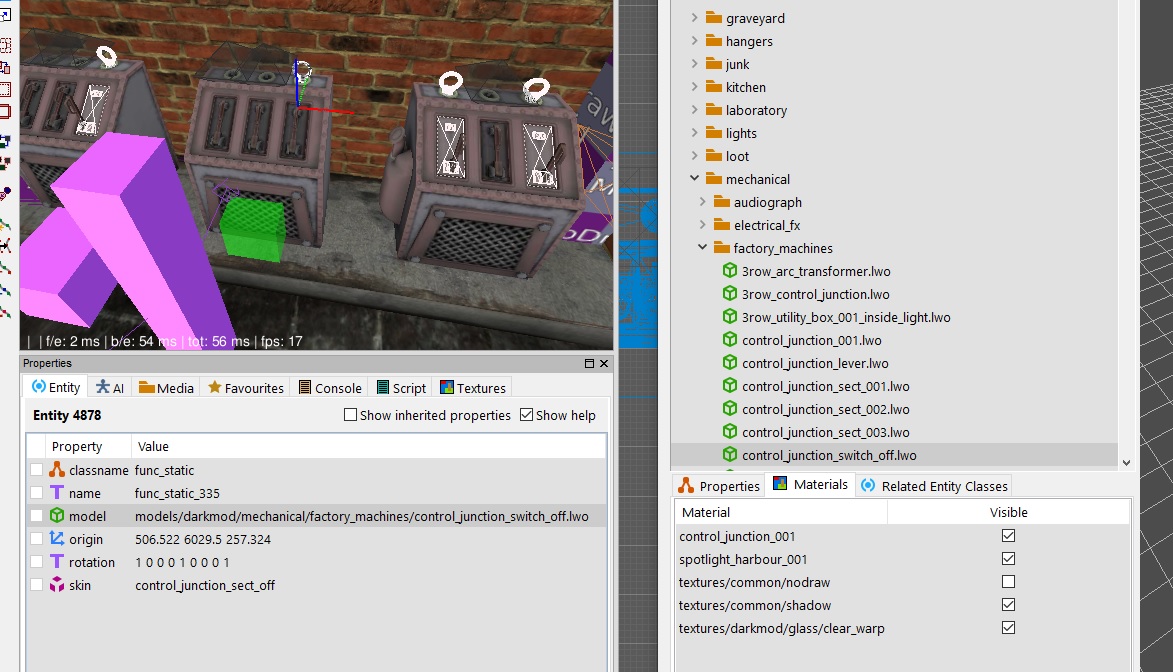

It took me some time to notice the crashdump is here. Well, I see that the crash happens during loading func_static_335's model "models/darkmod/mechanical/factory_machines/control_junction_switch_off.lwo" for collision. Perhaps deleting this model will fix the issue. I'll look in more detail why it crashes: there is some dangling pointer. |
|
|
That model has no collection mesh, its a DR exported model. The original was "models/darkmod/mechanical/factory_machines/control_junction_sect_003.lwo" Replacing with original models - - 2.12 will still crash on map load. - 2.11a I was able to do repeated dmap/map cycles (sp dmap/map - close & open tdm, dmap/map - close and reopen, rince and repeat etc). with both the old and replacement models. So I dont think its this model specifically. Untitled.jpg (236,173 bytes) |
|
|
And just to rules faulty RAM in my PC, I have also done a complete single pass in memtestX86 with no errors found. |
|
|

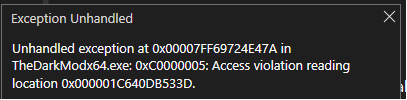

Checking Event viewer, Im getting the same Exception code: 0xc0000005 each time. All the search results are all suggesting a number of things, but the consensure is a memory problem. But as I have done a single pass of MemTestX86, Im not leaning that way atm. So in the meantime I will have to dig into that Exception code and see if ANY of the perported fixes will do anything. |
|
|
That crash in 2.11a happens in the same place, but the entity+model is different. |
|
|
Ive seen this now aswell a few times so figured I would add this to the tracker. If I leave TDM running in the background with a TPW loaded, I am also seeing the game eventually crashing also, see link to dump file below. - https://drive.google.com/file/d/1VCHo9Y__kNDfDQppcuQT6jsuykAxJXHj/view?usp=sharing |
|
|
On a fresh/vanilla install of windows 11, crash appear to have been resolved. But as a result of Win11 'still' being a steaming pos, I did a fresh install of windows 10. And the crashing is back - https://drive.google.com/file/d/1zdYFO6X6vWI35WPL07a-8QMLTOzKmf1I/view?usp=sharing |
|
|
The latest crash is in the same place in same circumstances: TheDarkModx64.exe!idCollisionModelManagerLocal::TryMergePolygons(cm_model_s * model, cm_polygon_s * p1, cm_polygon_s * p2) Line 1302 C++ [Inline Frame] TheDarkModx64.exe!idCollisionModelManagerLocal::MergePolygonWithTreePolygons(cm_model_s * node, cm_node_s *) Line 1484 C++ TheDarkModx64.exe!idCollisionModelManagerLocal::MergeTreePolygons(cm_model_s * model, cm_node_s * node) Line 1547 C++ TheDarkModx64.exe!idCollisionModelManagerLocal::MergeTreePolygons(cm_model_s * model, cm_node_s * node) Line 1558 C++ TheDarkModx64.exe!idCollisionModelManagerLocal::MergeTreePolygons(cm_model_s * model, cm_node_s * node) Line 1558 C++ TheDarkModx64.exe!idCollisionModelManagerLocal::MergeTreePolygons(cm_model_s * model, cm_node_s * node) Line 1558 C++ TheDarkModx64.exe!idCollisionModelManagerLocal::MergeTreePolygons(cm_model_s * model, cm_node_s * node) Line 1558 C++ TheDarkModx64.exe!idCollisionModelManagerLocal::MergeTreePolygons(cm_model_s * model, cm_node_s * node) Line 1558 C++ TheDarkModx64.exe!idCollisionModelManagerLocal::FinishModel(cm_model_s * model) Line 2945 C++ TheDarkModx64.exe!idCollisionModelManagerLocal::LoadRenderModel(const char * fileName, const idDeclSkin * skin) Line 3106 C++ TheDarkModx64.exe!idCollisionModelManagerLocal::LoadModel(const char * modelName, const bool precache, const idDeclSkin * skin) Line 3605 C++ TheDarkModx64.exe!idEntity::InitDefaultPhysics(const idVec3 & origin, const idMat3 & axis) Line 5279 C++ > TheDarkModx64.exe!idEntity::Spawn() Line 1325 C++ The second pointer "p2" is wrong, it is not even aligned properly: if ( p1->material != p2->material ) { return NULL; } Now it is func_static_36. |
|
|
And the crashdump during gameplay is also inside collisionmodel: > TheDarkModx64.exe!idCollisionModelManagerLocal::TranslateTrmThroughPolygon(cm_traceWork_s * tw, cm_polygon_s * p) Line 627 C++ [Inline Frame] TheDarkModx64.exe!idCollisionModelManagerLocal::TraceTrmThroughNode(cm_traceWork_s *) Line 82 C++ TheDarkModx64.exe!idCollisionModelManagerLocal::TraceThroughAxialBSPTree_r(cm_traceWork_s * tw, cm_node_s * node, float p1f, float p2f, idVec3 & p1, idVec3 & p2) Line 119 C++ TheDarkModx64.exe!idCollisionModelManagerLocal::TraceThroughModel(cm_traceWork_s * tw) Line 214 C++ TheDarkModx64.exe!idCollisionModelManagerLocal::Translation(trace_s * results, const idVec3 & start, const idVec3 & end, const idTraceModel * trm, const idMat3 & trmAxis, int contentMask, int model, const idVec3 & modelOrigin, const idMat3 & modelAxis) Line 1059 C++ TheDarkModx64.exe!idClip::Translation(trace_s & results, const idVec3 & start, const idVec3 & end, const idClipModel * mdl, const idMat3 & trmAxis, int contentMask, const idEntity * passEntity, bool ignoreWorld) Line 1078 C++ TheDarkModx64.exe!idPhysics_Monster::SlideMove(idVec3 & start, idVec3 & velocity, const idVec3 & delta) Line 130 C++ TheDarkModx64.exe!idPhysics_Monster::StepMove(idVec3 & start, idVec3 & velocity, const idVec3 & delta) Line 221 C++ TheDarkModx64.exe!idPhysics_Monster::Evaluate(int timeStepMSec, int endTimeMSec) Line 611 C++ TheDarkModx64.exe!idEntity::RunPhysics() Line 5440 C++ TheDarkModx64.exe!idAI::AnimMove() Line 6041 C++ TheDarkModx64.exe!idAI::Think() Line 2597 C++ Happened on func_static_4085. Here we have a polygon which looks fine, except that its numEdges is -1066139648 instead of 3. It looks like something is corrupting memory. |
|
|
I dont know what has changed for 213, but since moving to the latest SVN (dev17008-10685 ), the crashing is not happening anywhere near as often. Its basically back to 211 levels, where TDM will only crash if I have done a number of consecutive dmap/map cycles, maxing out the available assigned memory. |
