I somewhat improved the system in: r11078 idParallelJobManager::GetNumProcessingUnits now returns the actual number of worker threads to run a joblist on. r11079 Run R_AddSingleModel with adaptive chunking based on last-frame timing history. To improve scheduling of R_AddSingleModel, some timing information is needed. Now execution time of each R_AddSingleModel call for each view is measured and stored in idRenderEntityLocal. Here are some changes to reduce overhead of various timing routines: r11075 GetClockTicks no longer runs CPUID instruction to serialize instruction stream. r11076 Replaced return type of GetClockTicks & ClockTicksPerSecond from double to uint64. r11077 Changed timer in job system: Sys_GetClockTicks instead of Sys_GetTimeMicroseconds. The R_AddSingleModel jobs are first sorted by their execution time: slower jobs should run first, faster jobs should run later. This reordering alone improves load balancing, including the Scroll of Remembrance case where on extra-tough entity normally processed last. To reduce overhead, we then group the jobs into intervals/chunks, each chunk is executed as one job in job system. We normally aim for chunks of size r_parallelAddModelsChunk = 0.1 ms, but the chunks near the end are more subdivided so that workers are more likely to finish simultaneously. This is logically rather complicated algorithm, you can see it in JobChunks.cpp. And of course it uses the timing information as well. |
|
|
The new mode is enabled under r_useParallelAddModels = 2, which is now enabled by default: r17390 Frontend Acceleration ON now corresponds to r_useParallelAddModels = 2. I expect the new mode useful only for debugging and comparison purposes. But it can still be enabled by setting r_useParallelAddModels = 1. |
|
|

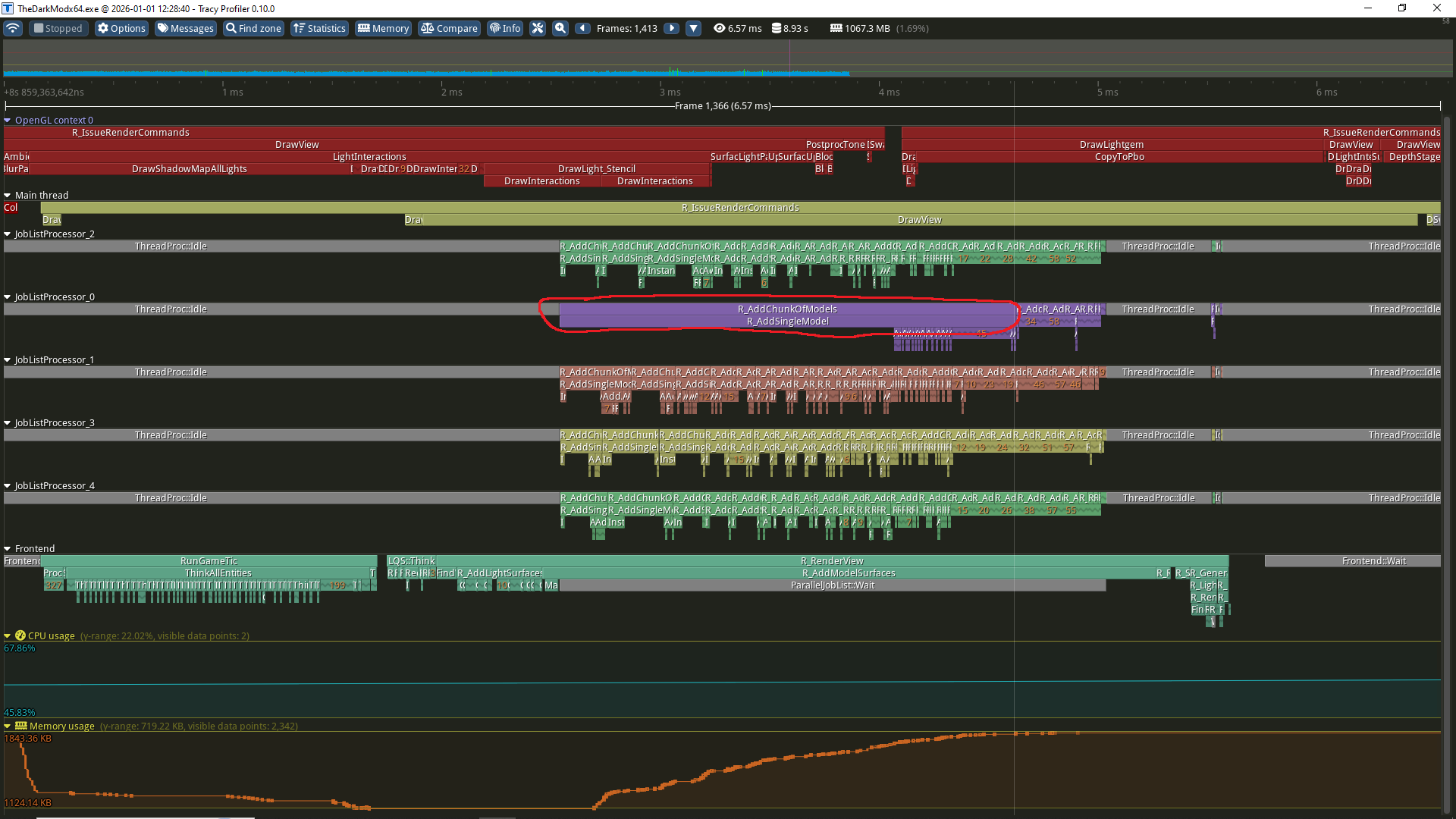

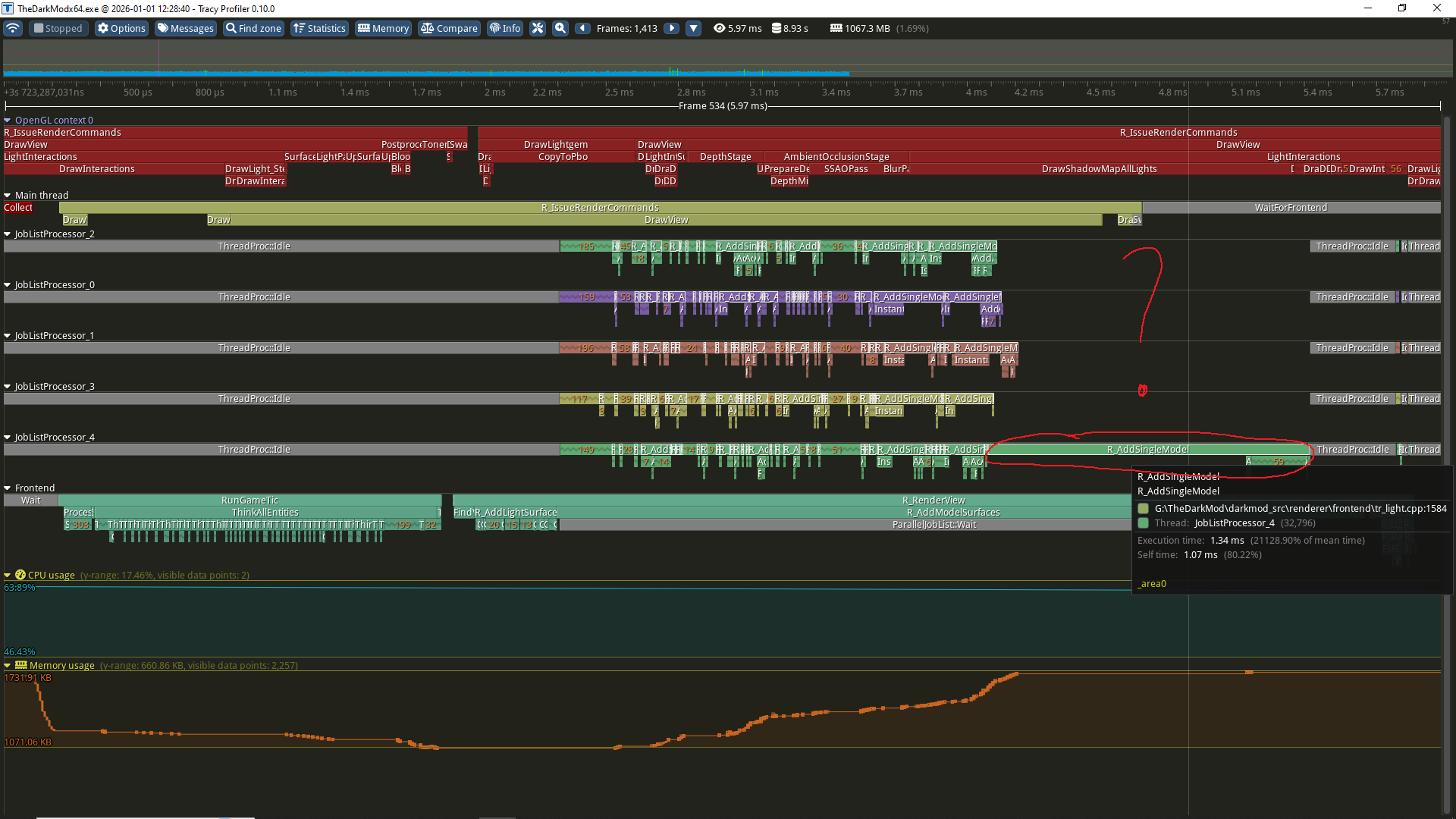

The new mode improves FPS at the start of Scroll of Remembrance from 160 to 190. I attached Tracy screenshots of a frame with old mode and the new mode. As you see, in the old mode there was a huge "_area0" model which took 2ms to process, and it also happened to run last for some reason. That's why the whole parallel for took: 2 ms to process all the other jobs in 5 threads 1.3 ms to process _area0 in 1 thread, which other 4 threads are sleeping Now this model starts first as the toughest one and runs in parallel with the other jobs. Altogether it takes about 2.5 ms now (instead of 3.3 ms). 6650_ScrollOfRemembrance_old.png (239,600 bytes) 6650_ScrollOfRemembrance_new.png (225,795 bytes) |
|
|

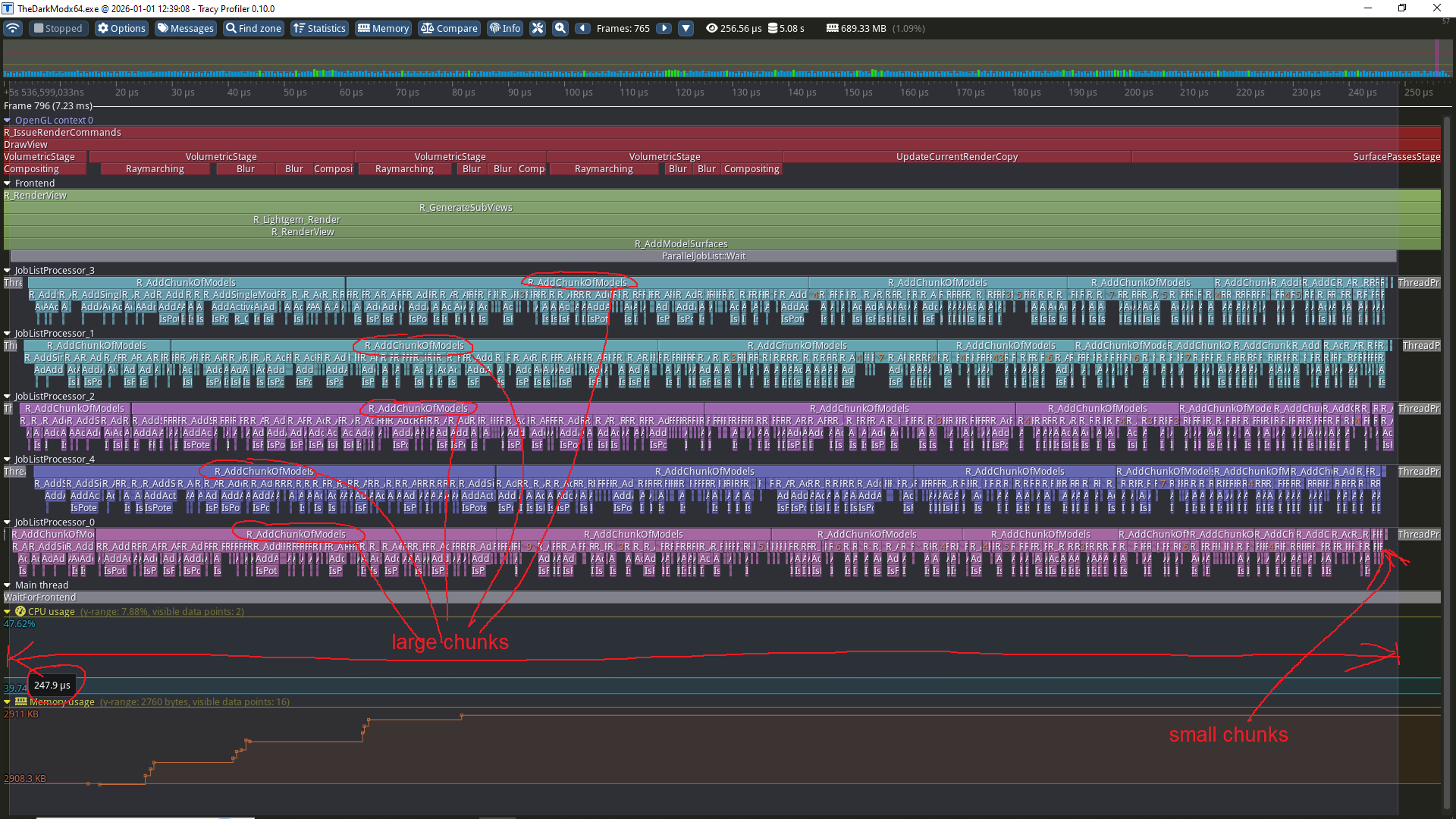

Here is how chunking works on lightgem subview in Displacement. The whole set of jobs takes 0.25 ms. You can see pretty large chunks of jobs at the very beginning (recall that 0.1 ms per chunks is the target). But near the end of execution we see progressively smaller chunks, which helps the worker threads to finish almost at the same time. |
