Summary0005465: Brushes with no visible surface towards orthoview "camera" are invisible in orthoview
DescriptionIf I use filters to hide 5 out of 6 surfaces on a brush, and the 6th surface faces away from the direction that orthoview is looking at it, the brush is invisible in orthoview.

For example, if I'm in top-down orthoview (looking down onto the map), and the sole visible surface of a brush is facing downwards.
Steps To Reproduce1) Create a brush, texture it with caulk. Duplicate it and move the copy to the side horizontally.
2) Apply the rough_wood_darkbrown material to the upfacing surface of one brush and to the downfacing surface of the other brush.
3) Make sure you're in top-down orthoview, then enable the caulk filter. The brush that has rough_wood_darkbrown on its downfacing surface disappears in orthoview.
TagsNo tags attached.

Relationships

related to 0005444 resolvedgreebo Brushes with no visible surface towards orthoview "camera" are unselectable in orthoview

Activities

Dragofer

Dragofer

26.12.2020 14:04

developer   ~0013244

Last edited: 26.12.2020 14:05

View 2 revisions

Just to keep track of this separate, less significant issue related to brushes with few visible faces.
Dragofer

Dragofer

26.12.2020 14:28

developer   ~0013248

Note that these bugs affect all 3 orthoview directions, not just downfacing brushes in top-down orthoview (looking at the wording of your release notes for 2.10)
greebo

greebo

05.02.2021 03:50

administrator   ~0013644

Last edited: 05.02.2021 03:50

View 2 revisions

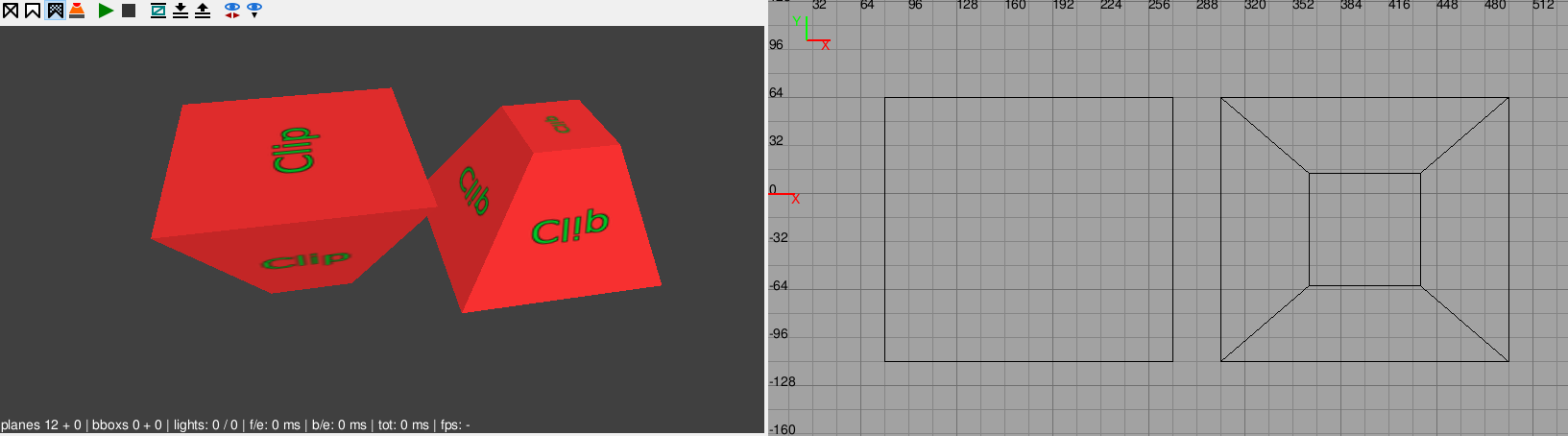

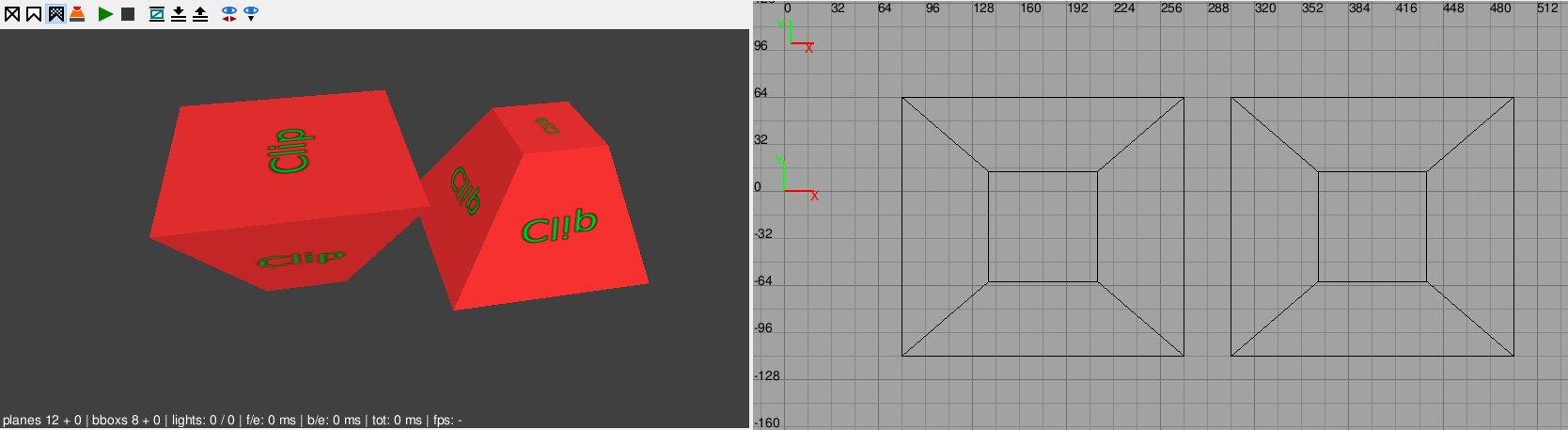

This is how the change affects orthoview rendering (the top screenshot is the newer one)
