View Issue Details
ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
0005710 | DarkRadiant | Saving and loading | public | 13.08.2021 17:34 | 02.04.2022 05:56 |
Reporter | illwieckz | Assigned To | greebo | ||
Priority | normal | Severity | normal | Reproducibility | always |
Status | closed | Resolution | fixed | ||
Product Version | 2.13.0 | ||||
Target Version | 2.14.0 | Fixed in Version | 2.14.0 | ||
Summary | 0005710: Q3 Legacy BrushDef parser sometime produce some wrong texture rotation | ||||
Description | When loading a map using the Q3 Legacy BrushDef format, some texture rotation looks correct and some other texture rotation appears to be wrong, like if it was rotated with a 45° angle. Reference (Dæmon game engine): https://dl.illwieckz.net/b/darkradiant/bugs/q3-legacy-brush-misorientated-textures/unvanquished_2021-08-13_191552_000.jpg DarkRadiant: https://dl.illwieckz.net/b/darkradiant/bugs/q3-legacy-brush-misorientated-textures/20210813-191427-000.darkradiant-unvanquished-vega.png | ||||
Steps To Reproduce | # Assuming the PROFILE environment variable is set # to the DarkRadiant installation directory. # Download the .game file. mkdir games cd games wget https://raw.githubusercontent.com/Unvanquished/unvanquished-mapeditor-support/master/build/darkradiant/games/unvanquished.game cp -a unvanquished.game "${PREFIX}/share/darkradiant/games/unvanquished.game" cd .. # Download some data sources. mkdir pkg cd pkg git clone https://github.com/UnvanquishedAssets/tex-common_src.dpkdir.git git clone https://github.com/UnvanquishedAssets/tex-vega_src.dpkdir.git git clone https://github.com/UnvanquishedAssets/map-vega_src.dpkdir.git # Download .darkradiant file with preconfigured camera view. cd map-vega_src.dpkdir/maps wget https://dl.illwieckz.net/b/darkradiant/bugs/q3-legacy-brush-misorientated-textures/vega.darkradiant cd ../.. # Download the definition file. mkdir def cd def wget https://raw.githubusercontent.com/Unvanquished/unvanquished-mapeditor-support/master/build/darkradiant/pkg/def/entities.def cd ../.. # Run DarkRadiant and configure it for Unvanquished game # and set the engine path to the folder containing the pkg/ folder # and fs_game to “pkg”. "${PREFIX}/bin/darkradiant" # Quit DarkRadiant and reopen it with a map source. "${PREFIX}/bin/darkradiant" "$(pwd)/pkg/map-vega_src.dpkdir/maps/vega.map" | ||||
Tags | No tags attached. | ||||
I've extracted three brushes from that scene in the screenshot, the one with "trim02" on it has its texture rotated by 90 degrees, it seems. The "floor01" brushes have their textures shifted (and/or rotated, hard to tell). { "classname" "worldspawn" "message" "Vega Industries: Research Outpost 13" { ( -592 1168 112 ) ( -720 1040 64 ) ( -720 1168 112 ) shared_vega/floor01 128 128 180 0.125 0.125 134217728 0 0 ( -592 1040 48 ) ( -720 1168 96 ) ( -720 1040 48 ) common/caulk 64 48 -90 0.5 0.5 134217728 0 0 ( -592 1168 112 ) ( -720 1168 112 ) ( -720 1168 96 ) common/caulk 0 0 0 0.25 0.25 134217728 0 0 ( -592 1040 64 ) ( -720 1040 48 ) ( -720 1040 64 ) common/caulk 0 0 0 0.25 0.25 134217728 0 0 ( -688 1104 64 ) ( -688 1072 -64 ) ( -688 1104 -64 ) common/caulk 0 0 0 0.25 0.25 134217728 0 0 ( -624 1056 64 ) ( -624 1088 -64 ) ( -624 1056 -64 ) common/caulk 0 0 0 0.25 0.25 134217728 0 0 } { ( -752 1040 64 ) ( -560 1040 64 ) ( -560 1024 64 ) shared_vega/trim02 0 -512 90 0.0625 0.0625 134217728 0 0 ( -576 1024 64 ) ( -576 1040 56 ) ( -576 1024 56 ) common/caulk 0 0 0 0.25 0.25 134217728 0 0 ( -544 1040 64 ) ( -736 1040 56 ) ( -544 1040 56 ) common/caulk 0 0 0 0.25 0.25 134217728 0 0 ( -752 1040 56 ) ( -560 1024 56 ) ( -560 1040 56 ) common/caulk 0 0 0 0.25 0.25 134217728 0 0 ( -736 1040 64 ) ( -736 1024 56 ) ( -736 1040 56 ) common/caulk 0 0 0 0.25 0.25 134217728 0 0 ( -752 1024 64 ) ( -560 1024 56 ) ( -752 1024 56 ) common/caulk 0 0 0 0.25 0.25 134217728 0 0 } { ( -688 928 64 ) ( -624 832 64 ) ( -688 832 64 ) shared_vega/floor01 128 256 180 0.125 0.125 134217728 0 0 ( -624 928 56 ) ( -688 832 56 ) ( -624 832 56 ) common/caulk 0 16 0 0.5 0.5 134217728 0 0 ( -688 800 64 ) ( -624 800 64 ) ( -624 800 56 ) common/caulk 0 0 0 0.125 0.125 134217728 0 0 ( -688 928 56 ) ( -688 832 64 ) ( -688 832 56 ) common/caulk 0 0 0 0.125 0.125 134217728 0 0 ( -624 928 64 ) ( -624 832 56 ) ( -624 832 64 ) common/caulk 0 0 0 0.125 0.125 134217728 0 0 ( -624 1024 64 ) ( -688 1024 56 ) ( -624 1024 56 ) common/caulk 0 0 0 0.25 0.25 134217728 0 0 } } |
|
I can confirm and see in the above screenies that the texture is wrong when compared to the in-game screenshot. I might get it to load such that it is fitting on the brush face, but these grates and floor panels make it hard to check whether I got the orientation right. @illwieckz can you do me a favour and take that above .map snippet (or the vega map itself), and load it with a modified texture set that allows for easier recognition of its orientation? Please modify the floor01 texture and paint some characters into each panel, ABCD|EFGH, that way I can see the desired orientation. Then please post a new in-game screenshot of these brushes or that scene. |
|

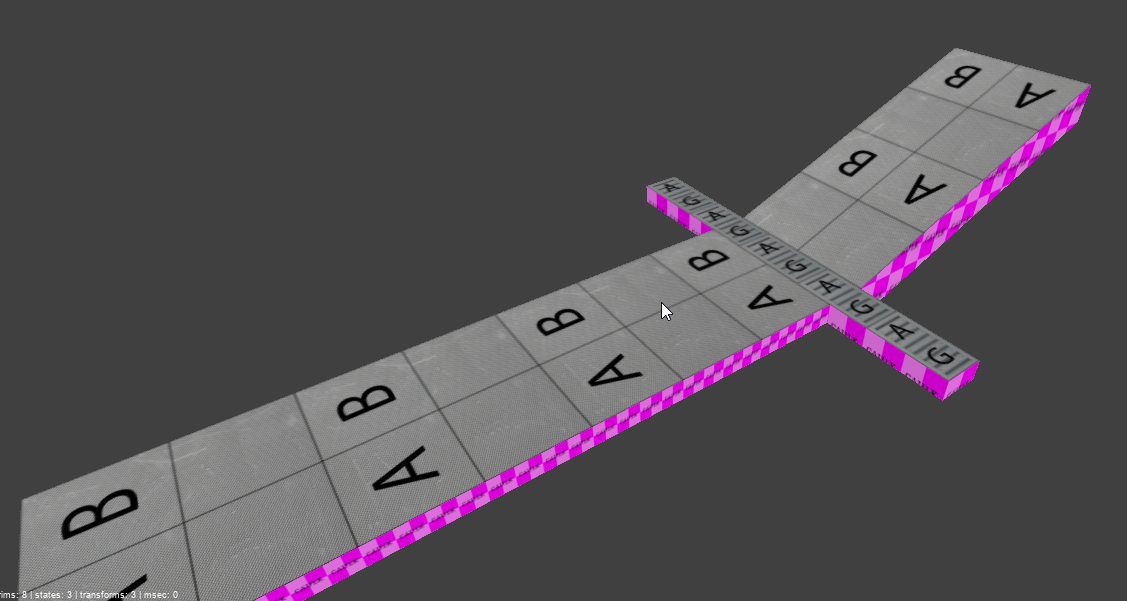

I've loaded it into NetRadiant, which displayed the modified texture on the brushes like this, I hope this is correct? | |
After wrapping my head around this for a few hours, I believe I understand why things are turning out different when loading Q3 maps. After calculating the 2D shift/scale/rotation matrix that is saved in Q3 (and visible in the Surface Inspector), the two game engines are taking different paths before applying the projection to their surfaces. The diference lies in the way the engines rotate their world coordinates, they choose a "base" tex coord system - from what I can see in GtkRadiant, Q3 is using exactly one of six possible transforms, whereas D3 is preserving the face normal and has an infinite number of transforms. I can fix the appearance of all Q3 brushes that are axis-aligned in at least two directions, like an angled brush that has an upwards slope along the Y direction. For those brushes, I can maybe calculate a texture offset and scale that will likely fix the texture mapping for those angled faces. For all other brushes that are angled in two directions the projection will never match up in DarkRadiant since the idTech4 "axis base" is not matching the Q3 one. The full fix would be to add the Q3 axis base algorithms to DarkRadiant, which means it would calculate the texture coords differently based on the chosen game type. Since DarkRadiant is specialised on idTech4, I'm hesitant to do this. But I'm wondering, I'm almost sure at this point that when using DarkRadiant to map for Unvanquished, you should have seen texturing inconstistences already for those angled brushes. Are you familiar with a problem like this, or any of your mappers? |
|
DarkRadiant: master 2dfb14f4 03.09.2021 15:07 Details Diff |
0005710: Start constructing some tests to check the legacy Q3 brush importer code |
Affected Issues 0005710 |
|
mod - test/Brush.cpp | Diff File | ||
mod - test/algorithm/Primitives.h | Diff File | ||
mod - test/algorithm/Scene.h | Diff File | ||
add - test/resources/tdm/maps/quake3maps/brush_no_transform.map | Diff File | ||
mod - test/resources/tdm/materials/example.mtr | Diff File | ||
add - test/resources/tdm/textures/a_1024x512.tga | Diff File | ||
mod - tools/msvc/natvis/mathlib.natvis | Diff File | ||
DarkRadiant: master a1f5207c 04.09.2021 04:46 Details Diff |
0005710: Refactoring, move the getBasisTransformForNormal to texturelib.h since we're going to need it outside the core module too. Add some comments to the ComputeAxisBase method, since its purpose is not exactly obvious. |
Affected Issues 0005710 |
|
mod - libs/texturelib.h | Diff File | ||
mod - radiantcore/brush/TextureProjection.cpp | Diff File | ||
mod - radiantcore/brush/TextureProjection.h | Diff File | ||
DarkRadiant: master 61463345 04.09.2021 07:53 Details Diff |
0005710: Port the Quake 3 texture projection calculation code from GtkRadiant and compensate the ComputeAxisBase rotation that is happening during idTech4 tex coord emission. This way we get the same visual appearance for brushes defined in Q3 map format while keeping the mandatory axis base to match what the dmap compiler in D3/TDM is inevitably doing. Fixup some unit test cases, since I got a few vertex coords wrong. |
Affected Issues 0005710 |
|
mod - radiantcore/map/format/primitiveparsers/BrushDef.cpp | Diff File | ||
mod - radiantcore/map/format/primitiveparsers/BrushDef.h | Diff File | ||
mod - test/Brush.cpp | Diff File | ||
DarkRadiant: master 2b062fb5 04.09.2021 11:04 Details Diff |
0005710: Refactoring |
Affected Issues 0005710 |
|
mod - radiantcore/map/format/primitiveparsers/BrushDef.cpp | Diff File | ||
mod - radiantcore/map/format/primitiveparsers/BrushDef.h | Diff File | ||
DarkRadiant: master ed2d1bd0 05.09.2021 06:15 Details Diff |
0005710: Another unit test checking an angled brush. This is currently causing trouble, as the axis base compensation matrix trick is not working here - only the 2D parts of the texture matrix are stored in the face's TextureMatrix class :/ |
Affected Issues 0005710 |
|
mod - test/Brush.cpp | Diff File | ||
DarkRadiant: master bd7dc98e 05.09.2021 10:44 Details Diff |
0005710: Add some comments about the approach and its limited usefulness. |
Affected Issues 0005710 |
|
mod - libs/texturelib.h | Diff File | ||
mod - radiantcore/brush/TextureProjection.cpp | Diff File | ||
mod - radiantcore/map/format/primitiveparsers/BrushDef.cpp | Diff File | ||
mod - test/Brush.cpp | Diff File | ||
DarkRadiant: master fbc3d116 05.09.2021 11:58 Details Diff |
0005710: Add another unit test with an axis-aligned brush including a non-identity texdef |
Affected Issues 0005710 |
|
mod - test/Brush.cpp | Diff File | ||
add - test/resources/tdm/maps/quake3maps/angled_brush.map | Diff File | ||
add - test/resources/tdm/maps/quake3maps/brush_with_transform.map | Diff File |
Date Modified | Username | Field | Change |
---|---|---|---|
13.08.2021 17:34 | illwieckz | New Issue | |
13.08.2021 18:01 | greebo | Relationship added | related to 0005711 |
29.08.2021 13:51 | greebo | Status | new => confirmed |
29.08.2021 13:58 | greebo | Note Added: 0014322 | |
29.08.2021 14:14 | greebo | Status | confirmed => feedback |
29.08.2021 14:14 | greebo | Note Added: 0014323 | |
02.09.2021 05:06 | greebo | Note Added: 0014331 | |
02.09.2021 05:06 | greebo | File Added: 2021-09-02 06_58_35maps_vega_brushes.map.png | |
05.09.2021 07:59 | greebo | Note Added: 0014332 | |
05.09.2021 10:44 | greebo | Changeset attached | => DarkRadiant master 2dfb14f4 |
05.09.2021 10:44 | greebo | Changeset attached | => DarkRadiant master a1f5207c |
05.09.2021 10:44 | greebo | Changeset attached | => DarkRadiant master 61463345 |
05.09.2021 10:44 | greebo | Changeset attached | => DarkRadiant master 2b062fb5 |
05.09.2021 10:44 | greebo | Changeset attached | => DarkRadiant master ed2d1bd0 |
05.09.2021 10:44 | greebo | Changeset attached | => DarkRadiant master bd7dc98e |
05.09.2021 10:45 | greebo | Note Edited: 0014332 | |
05.09.2021 13:18 | greebo | Changeset attached | => DarkRadiant master fbc3d116 |
05.09.2021 13:18 | greebo | Assigned To | => greebo |
05.09.2021 13:18 | greebo | Status | feedback => assigned |
10.10.2021 17:58 | greebo | Status | assigned => resolved |
10.10.2021 17:58 | greebo | Resolution | open => fixed |
10.10.2021 17:58 | greebo | Fixed in Version | => 2.14.0 |
10.10.2021 17:58 | greebo | Target Version | => 2.14.0 |
02.04.2022 05:56 | greebo | Status | resolved => closed |
