Summary0005990: Entity scissors sometimes loose

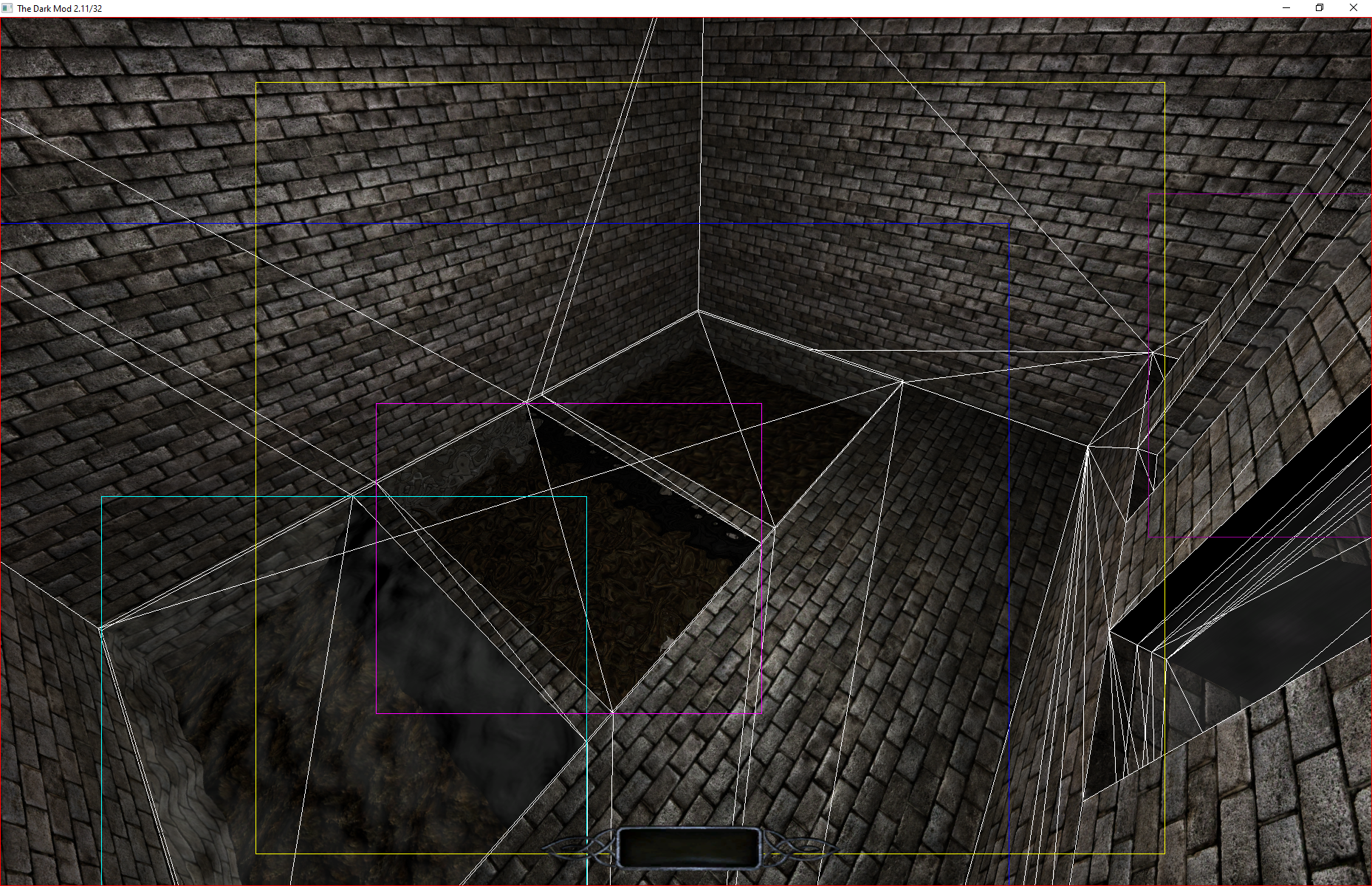

DescriptionIn the attached map look at the water entity
It's scissor rect is much bigger than its tris
This can be a problem if we want to e.g. sort surfaces by their depth range or optimize copy to texture by limiting to entity screen size
Steps To ReproduceLoad test map
Enable use entity scissors cvar
Enable show tris
Enable show entity scissors
(optionally) Filter entity render by its index
TagsNo tags attached.
