| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0006074 | DarkRadiant | GUI | public | 15.08.2022 17:52 | 13.01.2024 05:31 |
| Reporter | Dragofer | Assigned To | greebo | ||
| Priority | normal | Severity | normal | Reproducibility | always |
| Status | closed | Resolution | open | ||
| Product Version | 3.0.0 | ||||
| Fixed in Version | 3.1.0 | ||||
| Summary | 0006074: Func_animates created via Create Model initially place the mesh at map origin | ||||

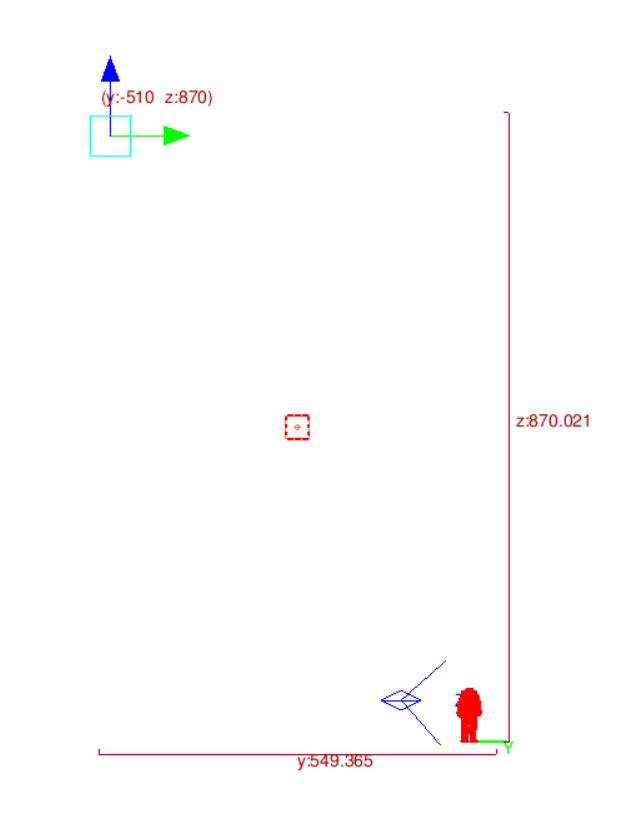

| Description | Any time a modelDef is selected from the Create Model menu, the visual model will appear at map origin while the orange box will appear where the user clicked in orthoview. The func_animate entity can't be selected by clicking on the orange box, only by clicking the visual mesh. Furthermore, the transformation widget (i.e. selection center) is placed in the opposite direction of the visual model from the orange box. All of this is fixed as soon as the func_animate entity is transformed, i.e. drag or rotate. | ||||
| Steps To Reproduce | 1) Right-click anywhere in orthoview except the map origin > Create model. Keep note of where you clicked. 2) Select anything from the modelDef and click Ok to create a func_animate entity with this model. 3) The func_animate entity's orange box is placed where you clicked. The model appears at map origin. The transformation widget is placed in the opposite direction of the orange box relative to the model. 4) Move the entity a little bit. All 3 components now snap to where the transformation widget is. | ||||
| Tags | No tags attached. | ||||
