Summary0005115: Export patches: .lwo loses smooth shading
DescriptionWhile re-exporting models in DR has been working fine, exporting patches as an .lwo creates a model that has lost smooth shading.
Polys count is a bit different than expected, i.e. a 16-sided cylinder patch with 34 vertices & 32 polys will have 34 vertices and 33 polys as an .lwo.

When I import an .lwo derived from a patch into Blender 2.79b, the model suddenly has 96 vertices (=each of the 32 faces has its own 3 vertices). Removing doubles will eliminate 64 vertices.
An .lwo derived from a model will have the correct number of vertices when imported into Blender.
Steps To Reproduce1) Create a cylinder patch, give it ship_hull_medium as a texture and change subdivisions to 4 horizontal and 1 vertical. This shape has 34 vertices and 32 polys.
2) Select the cylinder and 'Export selected as model' with these settings

Output Format: .lwo
Center objects around origin
Skip surfaces textured with caulk

The model has no smooth shading ingame.
Additional InformationTested & confirmed in 2.6, 2.7pre2, 2.7pre3

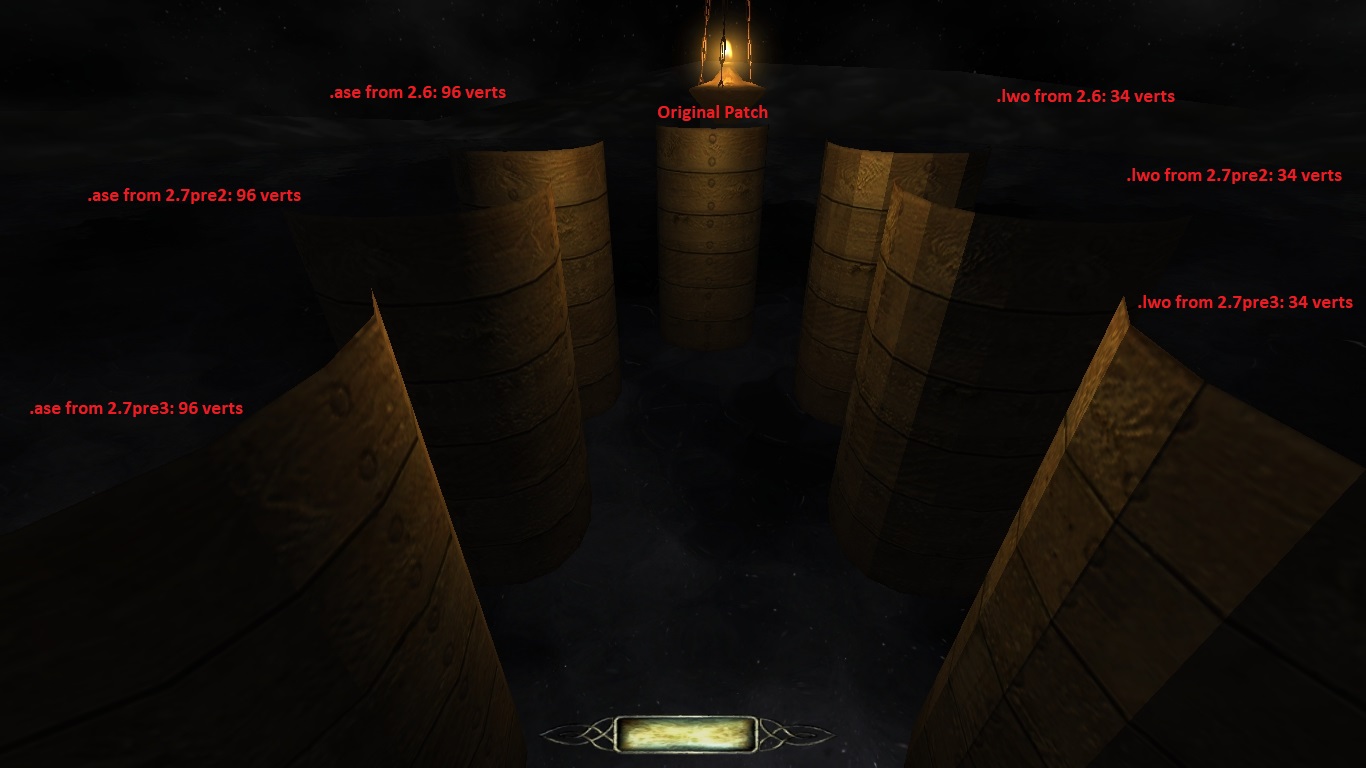

The attached archive and image also contains .ase exports of a patch, as those are also misbehaving. (0005116)
TagsNo tags attached.

Relationships

related to 0004750 closedgreebo Export Selected as .LWO Model: Exported models loose smooth shading after export.
related to 0005377 closedDragofer Exported .LWO models have no smoothing
related to 0005116 resolvedgreebo Export patches: .ase has too many verts
related to 0005519 closedDragofer Model chooser displays incorrect vert counts for some .lwo models
related to 0005522 acknowledged DR .ase importer should remove vertex doubles, .lwo importer should not

Activities

Dragofer

Dragofer

07.01.2020 10:03

developer

export_patch.pk4 (506,808 bytes)
Bikerdude

Bikerdude

12.01.2020 18:26

reporter   ~0012137

This might be related to - https://bugs.thedarkmod.com/view.php?id=4767
Bikerdude

Bikerdude

01.05.2020 12:47

reporter   ~0012442

Last edited: 01.05.2020 12:56

View 2 revisions

This issue is still happening as of the latest version of DR, 2.08 pre5

1. create a patch cylinder.
2. select export as .LWO and click 'replace with exported model' when exporting.
3. dmap/map and the exported model has lost all the smoothing.
Bikerdude

Bikerdude

08.11.2020 16:18

reporter   ~0012869

Last edited: 10.11.2020 09:38

View 2 revisions

Nice work Greebo, this will save a lot of Blender time :-)
Dragofer

Dragofer

09.11.2020 14:24

developer   ~0012882

Thanks! This one's highly appreciated.
